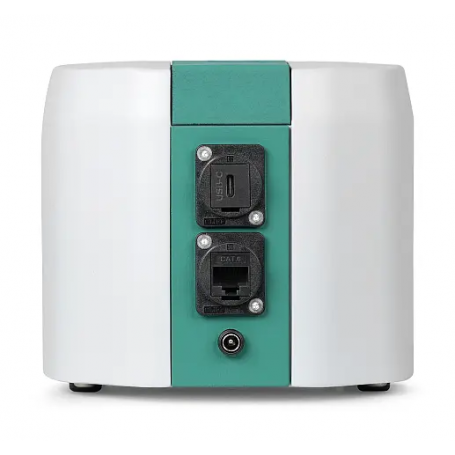

Indoor ultrafine particle monitor - real-time UFP data and cloud connectivity: Pegasor PPS-1000 | PEGASOR

The Pegasor PPS-1000 is a compact indoor ultrafine particle monitor designed for real-time indoor air quality monitoring, occupational hygiene, exposure assessment and research applications.

Successor to the Pegasor Airin for indoor UFP monitoring, the PPS-1000 provides continuous measurement of ultrafine particles that are often not detected by conventional indoor air quality monitors.

The instrument measures particle number concentration, lung deposited surface area, particle mass and median particle size in one device. This gives users a more complete view of indoor particle conditions, source activity, ventilation performance and human exposure indicators.

Designed for everyday indoor deployment, the PPS-1000 combines Pegasor’s proven particle sensing technology with a compact design, quiet integrated pump, simple single-button interface, integrated modem and cloud-connected data access.

Advantages

• Real-time UFP monitoring: continuous indoor ultrafine particle data for rapid assessment of changing air quality conditions.
• Four key parameters in one device: PN, LDSA, PM and median particle size are measured by a single compact monitor.
• Designed for indoor environments: compact and quiet operation for offices, schools, laboratories, public buildings, workplaces and indoor industrial spaces.
• Integrated modem: enables straightforward cloud data transfer without requiring an external modem.
• Low-maintenance operation: suitable for routine indoor monitoring with simplified long-term use.
• No consumables or operating liquids: helps reduce operating costs and simplifies deployment in technical or occupied environments.
• Cloud-connected data access: remote access to measurement data, trends, reports and device status through the Pegasor Cloud Portal.

Key characteristics

• Measured parameters: particle number concentration, lung deposited surface area, particle mass and median particle size.
• Concentration range: 30 to 100,000,000 #/cm³.
• Particle size range for PM and particle size: 10 to 200 nm.
• Particle size range for PN and LDSA: 10 nm to 1 µm.
• Response time: 0.2 s.
• Sample flow rate: 1.5 lpm.
• Communication: cloud connection, Ethernet, Modbus and USB.
• Power requirements: 24 VDC, 6 W, 0.25 A.
• Dimensions: 226 x 146 x 127 mm.
• Weight: 2.1 kg.
• Sensor: Pegasor PPS-G2 sensor with electrical particle detection technology.
• Sensor performance: PPS-G2 sensor performance measured by the Federal Institute of Metrology METAS, test report 235-11079.

Typical applications

• Indoor air quality monitoring in offices, schools, public buildings and occupied indoor environments.
• Occupational hygiene and exposure assessment where ultrafine particles may be linked to indoor activities, processes or equipment.
• Workplace air quality monitoring in laboratories, technical rooms, production areas and industrial indoor environments.
• UFP monitoring in schools and public buildings to support air quality studies and ventilation assessments.
• Ventilation and source investigation studies to identify particle events and compare indoor conditions over time.
• Research and development requiring real-time particle number, LDSA, particle mass and particle size data.

Why choose Pegasor PPS-1000

The Pegasor PPS-1000 is designed for indoor projects where ultrafine particle data must be measured directly, continuously and with a higher level of detail than conventional indoor air quality monitors can provide.

By combining particle number concentration, LDSA, particle mass and median particle size, the PPS-1000 supports a more complete technical assessment of indoor particle behaviour. This is particularly relevant for occupational hygiene, exposure assessment, ventilation studies and indoor source investigations.

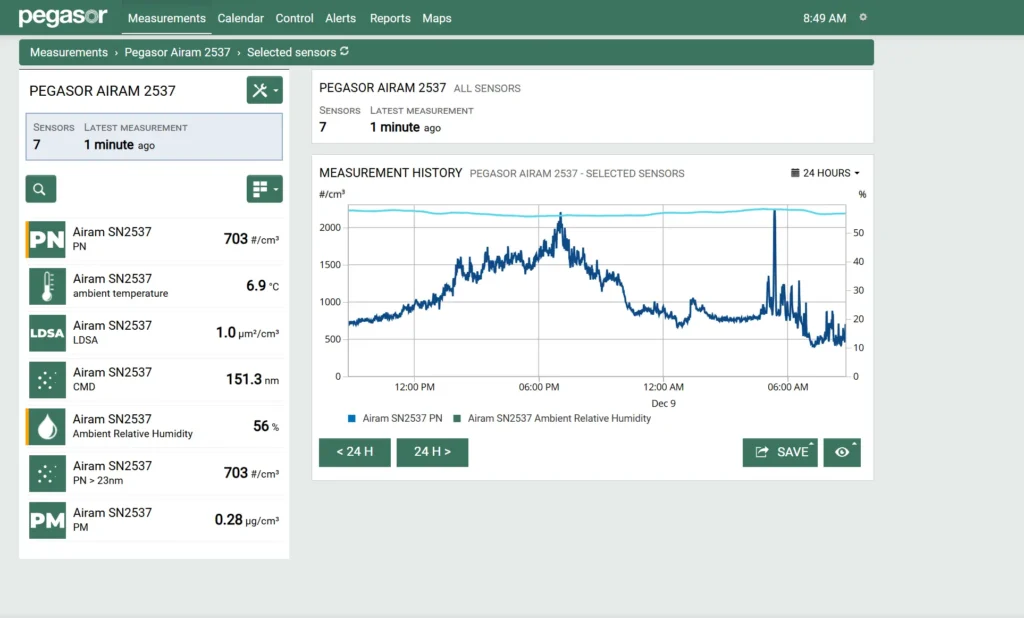

The integrated modem and Pegasor Cloud Portal make the PPS-1000 suitable for both single-point monitoring and multi-device deployments. Users can access measurement trends, check device status, create reports, export data for further analysis and use API access for integration with external systems.

For Canadian indoor air quality, occupational hygiene, laboratory and research applications, ES Canada supports technical users in selecting, deploying and integrating Pegasor PPS-1000 into indoor monitoring programs.
