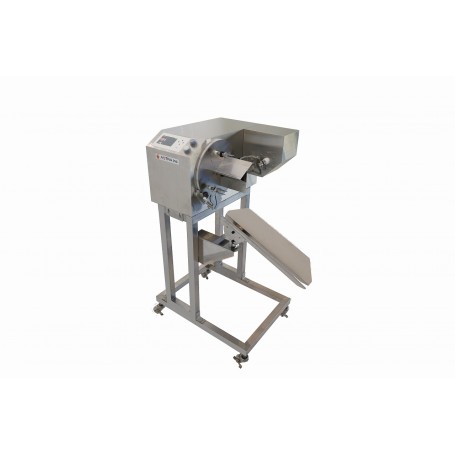

Automatic Fruit Peeling Machine : FAP-1001 | Astra Inc.

The FAP-1001 is an automatic industrial peeler, a much more powerful version than the KA-700H, equipped with a self-rejection system for processed fruits and vegetables. It is specially designed for small fruits and vegetables under 12 cm.

Compatible Produce

Orange, grapefruit, citrus fruits, peach, apple, pear, kiwi, persimmon, lemon, beetroot, turnip, potato, tomato, onion, etc.

Simple Operation

Select the fruit or vegetable from the on-screen list and press GO! The machine begins peeling with a processing time of 3–10 seconds depending on the item.

Included Blades (Ready to Use)

• F-3 medium flat blade (apple, lemon surface, potato)
• S-3 medium saw blade (kiwi, peach)
• S-2A thick saw blade (orange)
• S-1A special saw blade (grapefruit, orange)
• F-4 blade
• S-3 saw blade dedicated to zesting

What’s New in the Latest Version

• New, easy-to-use color display
• Adjustable peeling settings with illustrated guides for clearer, simpler adjustments

Technical Specifications

• Capacity (FAP-1001) – 3× faster than KA-700H
  • Apples: 1200 peelings/hour (blade replacement after 20,000–50,000 peelings)
  • Kiwis: 1200 peelings/hour (blade replacement after 5,000–10,000 peelings)
• Processable fruit size: height 40–100 mm, diameter 40–120 mm; with optional accessory: diameter/height 25–40 mm
• Processing time: 3–10 s per fruit
• Continuous operation: up to 8 hours if ambient temperature < 120 °C
• Blade lifespan: 5,000–50,000 peelings (depending on fruit)
• Spring lifespan: 100,000 peelings
• Operating temperature range: 20–40 °C
• Operating humidity range: 0–100% RH
• Ingress protection: IP55 (water and dust)
• Dimensions & Weight
  • Main unit: 512 × 575 × 365 mm — 35 kg
  • Base: 700 × 520 × 805 mm — 22 kg

Advantages

• Three times faster than the KA-700H
• Easy to clean with water
• Much higher yield thanks to patented technology
• Best-in-class machine for peeling kiwis
• Adjustable peeling speed and depth
