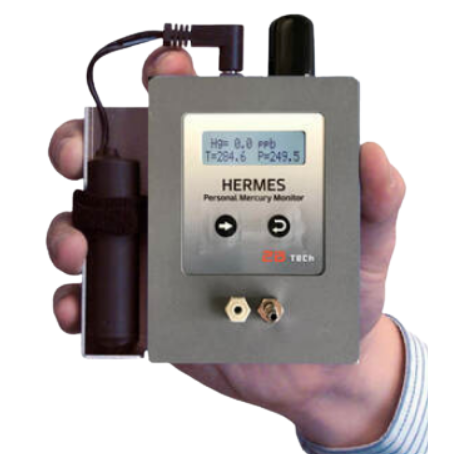

Personal Mercury Monitor | 2.B Tech

It has a built in GPS so that mercury measurements may be logged continuously along with geographic location. By folding the optical path in the shape of a "U," it was possible to achieve a 15-centimeter path length, enabling extremely sensitive measurements of mercury in ambient air.

Application :

• Monitoring of exposure to individuals in the workplace
• Monitoring and control of mercury in industrial settings
• Personal exposure monitoring for studies of health effects of air pollutants
• Long-term monitoring at remote locations where power is highly limited

Features :

• Measurement principle : UV absorption at 254 nm
• Measurement range : 0 - 2000 µg/m3
• Resolution : 0.1 µg/m3
• Accuracy : better than 0.1 µg/m3 or 2% of reading
• Detection limit : 0.2 µg/m3
• Measurement interval: 10s (with options of averaging every 10 s, 1 min, 5 min, 1 hour)
• Nominal flow rate : 0.8 L / min
• Required flow > 0.5 L / min
• Average drift: < 0.1 µg/m3/day - < 5 µg/year
• Possible mercury units: ppb, µg/m3
• Pressure units : torr
• Temperature units : K
• Temperature and pressure corrected for measurement
• Temperature range: 0 - 50°C
• 7.4 V lithium-polymer battery with 5-8 h operating time on full charge
• Dimensions: 10.2 x 7.6 x 3.6 cm
• Weight: 340 g
