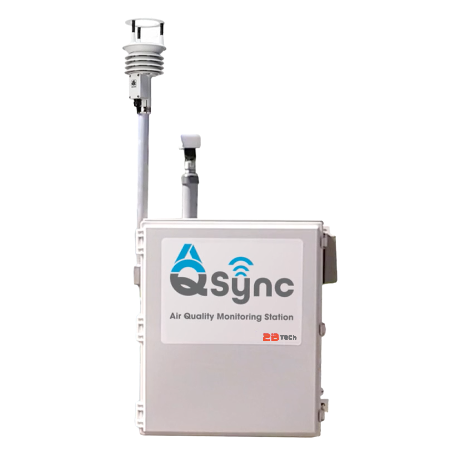

Air monitoring Station AQsync | 2.B Tech

An innovation by 2.B Tech capable of measuring and analyzing more than 10 air components in real time in a compact, low-power monitoring station. It features a touch screen for easy accessibility, with a simple, effective interface and very low maintenance requirements.
It's designed to be hung on a post near a parking lot, for example.


The AQSync is a compact and low-power monitoring station that provides fast measurements of all of the most important air pollutants, including O3, NO, NO2, CO CO2, PM1 and PM2.5, along with ambient temperature (T), pressure (P), relative humidity (RH), wind speed and wind direction. It enables all this information to be analyzed in real time, It enables all this information to be analyzed in real time, at the same time. AQsync is a mixes older products into one and 2.B Tech's know-how. For instance, ozone is measured on the basis of UV absorbance at 254 nm by our OEM-108-L ozone monitor
The housing features a tamper-proof door with key access, and can be equipped for mounting on a pole from 7.6 to 30.5 cm in diameter.  The power supply is 110/220 ac, and can be optionally powered by a solar panel. Individual measurement modules are designed to be easily disassembled for servicing.

Features :

  • Measures O3, NO, NO2, CO, CO2, PM1, PM2.5, T, P and RH, wind speed and wind direction
  • Ozone is measured by a Model 108 miniature ozone monitor, a US EPA Federal Equivalent Method (FEM)
  • NO and NO2 are measured by a compact version of our Model 405 nm NO2/NO/NOx Monitor, a US EPA FEM
  • CO2 measured by a non dispersive infrared (NDIR) optical instrument
  • CO measured by a highly reproducible AlphaSense electrochemical sensor
  • PM1 and PM2 measured by a MetOne optical particle counter eligible for testing for US EPA FEM certification
  • Planned future upgrades will include measurements of black carbon via our Black Carbon Photometer, ammonia and sulfur dioxide by amperometry and BTEX by photoionization at 10.0 ev
  • 2G/3G/LTE real time cellular data transmission to your server and/or the 2B Tech server
  • Data console for online plotting and analysis of uploaded data
  • Touchscreen
  • Wifi connectivity addressable over the internet
  • Ethernet
  • microSD data storage
  • Rugged NEMA 4 enclosure
  • Modular design allows removal of individual instruments for servicing

System specifications :

Weight 54.7 lb, 24.9 kg
(varies with modules chosen)
Size 25.5 x 25.5 x 10.3 in (65 x 65 x 26.2 cm); height with weather station is 49 in (124.5 cm)
Power 35 watt (53 watt max during warmup)
(varies with modules chosen)
Data Transmission Cellular or WiFi to the Cloud; Ethernet; Modbus (TCP); SD card
Sample Flow Rate ~4 L/min
(varies with modules chosen)
