IoT Weather Station – Multi-sensor, Solar Powered, LoRaWAN®: WTS506 | Milesight

The WTS506 IoT Weather Station is an all-in-one, solar-powered LoRaWAN® weather monitoring system designed for continuous outdoor measurements in demanding environments. It integrates multiple meteorological sensors within a robust, compact enclosure, enabling reliable long-term monitoring of key atmospheric parameters.

Designed for easy deployment and autonomous operation, the WTS506 is fully compatible with standard LoRaWAN® gateways and integrates seamlessly with the Milesight IoT Cloud for remote data access, visualization, and alarm management.

Key Advantages

• All-in-one weather monitoring with temperature, humidity, wind speed, wind direction, barometric pressure, and rainfall sensors
• Solar powered with internal rechargeable battery backup for autonomous operation
• Long-range LoRaWAN® communication up to 15 km line-of-sight in rural areas
• Rugged outdoor design, waterproof, UV-resistant, and salt-spray resistant
• Local data storage with retransmission to prevent data loss
• Quick installation and configuration via NFC or USB

Main Features

• Temperature measurement: -40°C to +85°C, accuracy ±0.3°C
• Relative humidity measurement: 0–100 %RH, accuracy ±3 %RH
• Ultrasonic wind speed and direction sensing with no moving parts
• Barometric pressure measurement: 500–1100 hPa
• Piezoelectric rainfall measurement with high resolution
• Integrated data logging (up to 19,000 records)
• Threshold alarms and historical data retrieval
• OTAA and ABP support, LoRaWAN® Class A

Typical Applications

• Meteorological and environmental monitoring
• Smart agriculture and precision farming
• Smart cities and urban climate monitoring
• Building and infrastructure monitoring
• Renewable energy and site assessment projects

Additional Information

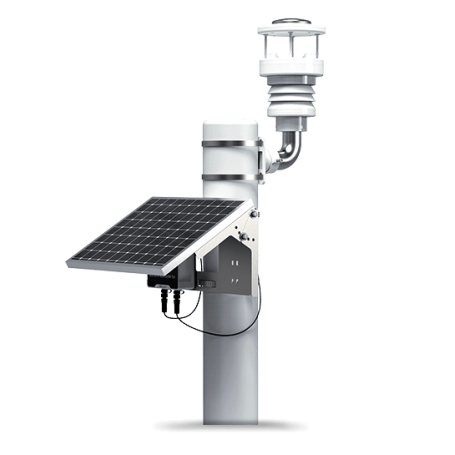

The WTS506 consists of three main components: the multi-sensor weather unit, the LoRaWAN® hub, and a high-efficiency solar panel. The system is engineered for continuous outdoor operation with minimal maintenance, making it well suited for remote and off-grid installations across Canada.

Its compatibility with standard LoRaWAN® network servers and the Milesight IoT Cloud allows easy integration into existing IoT infrastructures and environmental monitoring platforms.
