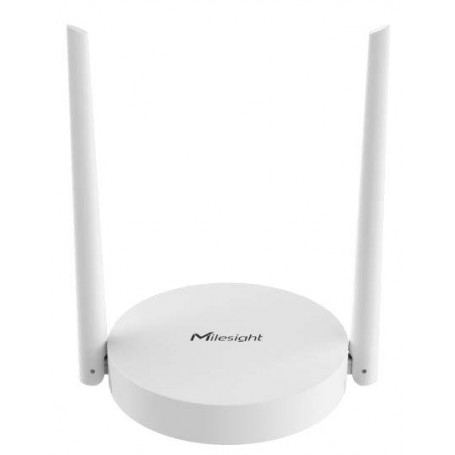

Indoor LoRaWAN® Gateway - Ethernet or 4G LTE Connectivity: UG63-915M Series | Milesight

Compact indoor 8-channel LoRaWAN® gateway with Ethernet or 4G LTE backhaul. The UG63-915M series ensures reliable IoT connectivity, low power consumption, and seamless integration for smart building, industrial, and remote monitoring applications.

Request a quote

PRICE ON REQUEST

Version

Quantity

The UG63-915M series is a compact indoor 8-channel LoRaWAN® gateway designed for reliable and high-performance IoT deployments across commercial, institutional, and industrial environments. Based on the Semtech SX1302 chipset, it ensures efficient packet processing with optimized power consumption.

Operating in the 915 MHz ISM band, the UG63 is available in two backhaul versions: a stable Ethernet RJ45 version for fixed infrastructure and a 4G LTE (CAT 1) version for autonomous deployments where wired connectivity is unavailable. Its ultra-compact and lightweight design allows flexible installation on desks, walls, or ceilings, enabling efficient indoor network densification.

Advantages

8 half-duplex LoRaWAN® channels supporting large-scale IoT networks
High-performance SX1302 chipset ensuring improved capacity and low power consumption
Dual backhaul options: Ethernet for stable infrastructure or LTE for remote deployments
Integrated 4G LTE (CAT 1) option with global band support (L08GL version)
Compact and lightweight design for flexible indoor installation
Embedded Network Server for standalone deployments (up to 20 devices)
Compatibility with major LNS platforms including The Things Stack, ChirpStack, and AWS IoT Core for LoRaWAN®
Secure communication with VPN (OpenVPN) and standard IoT protocols

Main Features

LoRaWAN® Channels: 8 (Half-duplex)
Chipset: Semtech SX1302
Receiver Sensitivity: up to -140 dBm
Max TX Power: 27 dBm
Frequency Band: US915 / AU915 (915 MHz ISM)
Device Capacity: up to 2000 devices (traffic dependent)
Wi-Fi: 2.4 GHz AP mode (configuration only)
Protocols: HTTP, HTTPS, MQTT
VPN: OpenVPN Client
Power Supply: 5V Type-C / 5–12V DC / PoE via splitter (802.3af)
Typical Power Consumption: 1.3 W
Ingress Protection: IP30
Operating Temperature: -20°C to +50°C
Dimensions: Ø115 × 21 mm

Backhaul Options

UG63-915M (Ethernet version): 1 × RJ45 10/100 Base-T, weight 140 g
UG63-L08GL-915M (LTE version): 4G LTE (CAT 1) with GSM fallback, 1 × Micro SIM (3FF), weight 158.2 g

Typical Applications

Commercial and smart building IoT deployments
Energy monitoring and building automation
Educational campuses and research facilities
Indoor parking and logistics infrastructures
Remote sites without wired internet access (LTE version)
Temporary or mobile IoT deployments
Industrial monitoring across distributed environments

Comparison table

Model	Backhaul	Cellular	SIM Slot	Ethernet Port	Weight	Typical Use Case
UG63-915M	Ethernet	No	No	1 × RJ45 10/100 Base-T	140 g	Fixed indoor installations with wired network
UG63-L08GL-915M	LTE + Ethernet (backup)	4G LTE (CAT 1) + GSM fallback	1 × Micro SIM (3FF)	1 × RJ45 10/100 Base-T	158.2 g	Remote or mobile deployments without wired access
