Flow transmitter - 4-20 mA output: AV-FLOW TRANSMITTER | MAINSTREAM MEASUREMENTS
AV-FLOW TRANSMITTER provides ultrasonic area-velocity flow measurement and a 4–20 mA output for system integration.

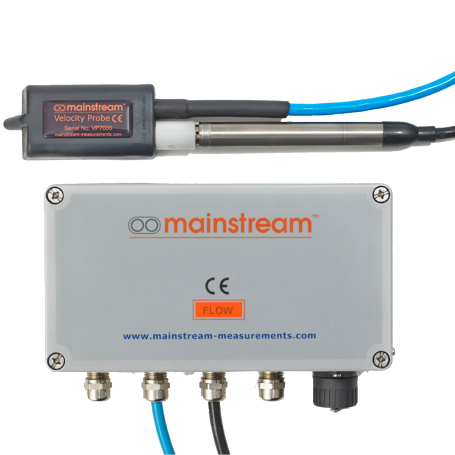

The AV-FLOW TRANSMITTER is a high-performance flow transmitter designed for use as a system component in open channel and part-filled pipe applications. It uses the area-velocity method with an immersed ultrasonic velocity probe and level input to determine flow rate. The transmitter is intended for installations requiring reliable hydraulic measurement, simple integration, and PC-based configuration and diagnostics.
Advantages
- Area-velocity measurement for open channels and part-filled pipes
- Quick installation without the need for weirs or flumes
- Velocity measurement from 10 mm/s up to 5 m/s
- High sensitivity ultrasonic sensing suitable for relatively clean water applications
- Real-time signal processing to reduce power consumption
- Smart power saving mode that adapts measurement time to flow and signal quality conditions
- Signal quality monitoring to confirm measurement integrity
- Automatic recording of velocity signals and histograms for performance monitoring
- One configurable 4-20 mA output for system integration
- Up to 500 m distance from system unit to velocity and level sensors
Main Features
- Measurement principle: area-velocity flow measurement
- Velocity method: phase coherence time delay measurement
- Velocity sensor: submerged ultrasonic sensor with integrated electronics
- Velocity range: from -5 m/s to -10 mm/s and from 10 mm/s to 5 m/s
- Velocity resolution: better than 1 mm/s
- Level input: compatible with any 4-20 mA current loop level sensor
- Derived measurements: area, flow rate, and forward, reverse, and total flow quantities
- Power supply: external 12 V and 24 V supplies
- Power monitoring: supply voltages viewable through the user interface
- Local communications: RS232 and USB compatible interface with automatic baud rate detection
- Remote communications: optional external SDI or GPRS device
- Software: Mainstream Communicator UI software for configuration, diagnostics, real-time display, and data export
- Analog output: one configurable 4-20 mA output
- Velocity sensor protection: IP68
- System enclosure: IP67 with encapsulated electronics to IP68
- System unit dimensions: 220 x 120 x 80 mm
- System unit weight: 1.65 kg
Typical applications
- Effluent monitoring
- Waste water treatment
- Industrial flow measurement
- Irrigation channels and canals
- River and stream flow measurement
- Water distribution
- Sewer flow measurement including inflow and infiltration and CSO monitoring
- Portable and fixed-site flow measurement with weirs and flumes
Why choose AV-FLOW TRANSMITTER
The AV-FLOW TRANSMITTER is a strong choice for users who need a compact and reliable flow transmission component for hydraulic monitoring systems. Its combination of immersed ultrasonic velocity sensing, level-based area calculation, signal quality validation, and straightforward 4-20 mA integration makes it well suited for water and wastewater applications where dependable flow data and simple commissioning are required.
What should you check before choosing this product?
Check the pipe or channel geometry, flow conditions and sensor installation requirements. Confirm the measurement range, output interfaces and power supply for the intended monitoring point.
