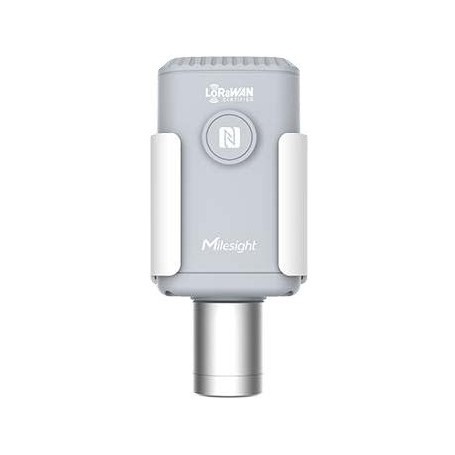

Carbon Dioxide Sensor : EM500-CO2 | Milesight

The EM500-CO2 is designed for measuring CO2, temperature, humidity, and barometric pressure in harsh environments and transmitting data using LoRaWAN technology. With this low power consumption technology, the EM500-CO2 can operate for up to 10 years with a 19000 mAh battery. Combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. The EM500-CO2 is widely used for applications such as smart agriculture, smart city, forest fire detection, and more.

Advantages :

• Ultra-long-distance transmission up to 10 km line of sight
• IP65 waterproof enclosure for harsh environment applications
• Replaceable 19000 mAh battery with a 10-year lifespan
• Equipped with NFC for easy configuration
• Compatible with standard LoRaWAN® gateways and network servers
• Quick and easy management with the Milesight IoT Cloud solution

Main Features :

Dimensions

• 147.9 × 71 × 69.5 mm (5.8 × 2.8 × 2.7 in)

Materials

• IP65 waterproof enclosure

Performance

• Transmission Technology: LoRaWAN®
• Frequencies: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Tx Power: 16dBm(868)/20dBm(915)/19dBm(470)
• Sensitivity: -137dBm@300bps
• Mode: OTAA/ABP Class A

Sensors

• Carbon Dioxide (CO2) Sensor: NDIR Type, Range 400 - 5000 ppm, Accuracy ± (30 ppm + 3% of reading)
• Temperature Sensor: MEMS Type, Range -30°C to +70°C, Accuracy 0°C to +70°C (+/- 0.3°C)
• Humidity Sensor: MEMS Type, Range 0% to 100% RH, Accuracy 10% to 90% RH (+/- 3%)
• Barometric Pressure Sensor: MEMS Type, Range 300 - 1100 hPa, Accuracy ±1 hPa

Power Supply

• 19000 mAh Li-SOCL2 Battery (ER34615)
• Battery Life: 10 years (10 min interval)

Operating Conditions

• Operating Temperature: -30°C to +70°C
• Relative Humidity: 0% to 100% (non-condensing)

Certifications

• CE, FCC, RoHS, LoRaWAN® Certified, ISED, ICASA

Applications :

• Warehouse environment monitoring
• Basement and underground parking monitoring
• Smart agriculture
• Forest fire detection
• Smart buildings
