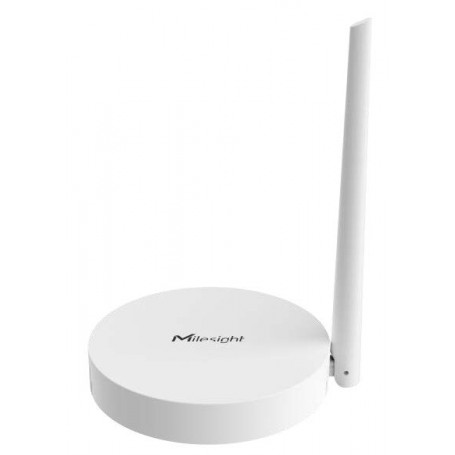

Mini LoRaWAN® Indoor Gateway – 8-Channel, Compact Design: UG63 | Milesight

The UG63 Mini LoRaWAN® Gateway is a lightweight, high-performance 8-channel indoor gateway designed for small-scale LoRaWAN® deployments or targeted coverage enhancement. Built on the SX1302 LoRa® concentrator, the UG63 efficiently forwards packets between end devices and mainstream LoRaWAN® network servers, making it an ideal solution for offices, campuses, parking facilities, and smart buildings.

Key Benefits:

• 8-channel LoRaWAN® architecture supporting high device density with low power consumption
• Compact and discreet form factor for rapid indoor deployment
• Cost-effective solution for small LoRaWAN® networks or blind-spot coverage
• Flexible backhaul options with Ethernet and optional cellular connectivity
• Easy integration with major LoRaWAN® network servers and cloud platforms

Main Technical Features:

• LoRaWAN® Channels: 8 (half-duplex)
• LoRa® Chipset: Semtech SX1302
• Device Capacity: >2000 end nodes (Class A/B/C, depending on traffic profile)
• Frequency Bands: EU868, US915, AU915, CN470, AS923, KR920, RU864, IN865
• Receiver Sensitivity: up to −140 dBm @ 292 bps
• RF Output Power: up to 27 dBm
• Ethernet: 10/100 Mbps RJ45, 1.5 kV isolation
• Cellular (optional): 4G LTE Cat-1 / GSM (variant dependent)
• Wi-Fi: 2.4 GHz (AP mode for local configuration)

Typical Applications:

• Smart buildings and offices
• Indoor smart parking systems
• Campus-wide IoT networks
• Industrial and commercial indoor monitoring
• LoRaWAN® coverage extension and blind-spot filling

Why Choose the UG63:

The UG63 combines enterprise-grade LoRaWAN® performance with a minimal footprint, making it particularly well suited for indoor environments where ease of installation, reliability, and scalability are critical. Its ability to operate as a standalone gateway or as a complementary node alongside larger gateways enables flexible network architectures while keeping deployment and operating costs under control.
