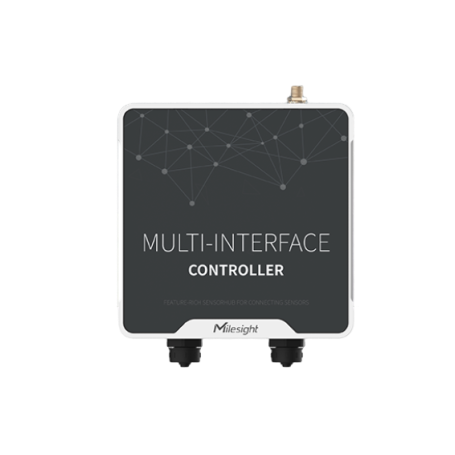

Multi-interface LoRaWAN® controller - IP68 outdoor data acquisition: UC50x Series | Milesight

IP68 multi-interface LoRaWAN® controller for wired sensor data acquisition, supporting GPIO, analog input, RS232/RS485 and SDI-12 interfaces.

Request a quote

PRICE ON REQUEST

The UC50x Series is a multi-interface LoRaWAN® controller designed for data acquisition from wired sensors and field equipment. It integrates several input and communication interfaces, including GPIO, analog input, RS232, RS485 and SDI-12, making it suitable for connecting existing instrumentation to a LoRaWAN® network.

Designed for outdoor and demanding environments, the UC50x Series features an IP68-rated enclosure with M12 connectors. Depending on the model, it can be powered by rechargeable batteries with embedded solar power, replaceable high-capacity batteries, or external DC power.

Advantages

Multi-interface connectivity: supports wired sensors through GPIO, analog input, RS232, RS485 and SDI-12 interfaces.
Outdoor-ready design: IP68 enclosure and M12 connectors for protection against water and dust.
Flexible power options: solar power, internal battery or DC 5-24 V power supply depending on the model.
LoRaWAN® communication: compatible with standard LoRaWAN® gateways and network servers.
Long-range wireless transmission: up to 15 km line of sight.
Fast configuration: setup via NFC mobile app or USB Type-C connection.
Data reliability: local data storage, data retrievability and retransmission to help reduce data loss.

Key Features

Wireless protocol: LoRaWAN®.
Frequency bands: CN470, IN865, EU868, RU864, US915, AU915, KR920 and AS923 variants.
GPIO: 2 × GPIO ports, software switchable as digital input, digital output or pulse counter.
Serial communication: 1 × RS232 or RS485 port, software switchable.
Serial protocols: transparent RS232/RS485 and Modbus RTU over RS485.
Analog input: 2 × analog inputs with 12-bit resolution.
Analog ranges: 4-20 mA or 0-10 V, switchable.
SDI-12: 1 × SDI-12 interface, SDI-12 V1.4 and transparent mode.
Power output: 3.3 V and switchable 5 / 9 / 12 V outputs for connected devices.
Ingress protection: IP68, rated for 1 m underwater for 7 days.
Mounting: wall or pole mounting.
Approvals: CE, FCC, ISED and RoHS.

Feature	UC501	UC502
LoRaWAN® class	OTAA / ABP Class A, Class C	OTAA / ABP Class A
Antenna	Internal or external antenna, depending on hardware option	Internal or external antenna, depending on hardware option
Data interfaces	GPIO, RS232 / RS485, analog input, SDI-12	GPIO, RS232 / RS485, analog input, SDI-12
Advanced features	Threshold alarm, change alarm, multicast, data storage, data retrievability, data retransmission	Threshold alarm, change alarm, data storage, data retrievability, data retransmission
Power supply	2 × 2550 mAh rechargeable ICR18650 batteries, embedded solar power 6 V / 1.7 W, or DC 5-24 V by M12 connector	3 × 9000 mAh replaceable ER26500 Li-SOCl2 batteries or DC 5-24 V by M12 connector
Operating temperature	-20°C to 60°C	-30°C to 70°C
Ingress protection	IP68	IP68

Typical Applications

Environmental monitoring: integration of wired sensors into LoRaWAN® monitoring networks.
Water and wastewater applications: remote acquisition from field instruments using analog, pulse, Modbus RTU or SDI-12 interfaces.
Agricultural and soil monitoring: connection of outdoor sensors where long-range, low-power transmission is required.
Industrial site monitoring: data acquisition from existing wired equipment without replacing the complete measurement chain.
Remote infrastructure monitoring: outdoor installations requiring robust enclosure protection and flexible power supply options.

Why choose UC50x Series

The UC50x Series is a practical solution for connecting wired sensors and field instruments to a LoRaWAN® network without redesigning the complete measurement architecture. Its combination of multiple industrial interfaces, IP68 protection, flexible power options and local data backup makes it well suited for distributed environmental, industrial and infrastructure monitoring projects.

For Canadian deployments, ES Canada can support the selection of the appropriate UC50x version according to the available sensor outputs, power constraints, installation environment and LoRaWAN® network architecture.
