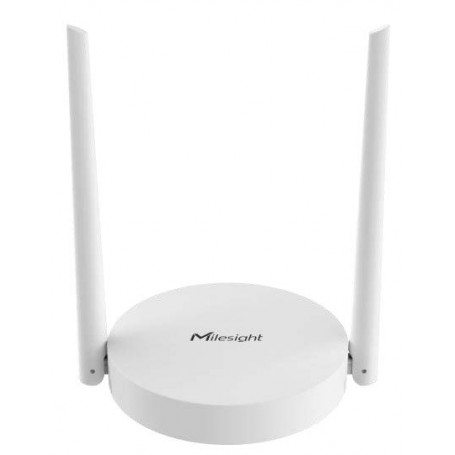

Mini LoRaWAN® Gateway – 8 Channels LTE 915 MHz: UG63-L08GL-915M | Milesight

The UG63-L08GL-915M is a compact indoor 8-channel LoRaWAN® gateway with integrated 4G LTE backhaul, designed for reliable IoT connectivity in locations where wired infrastructure is limited or unavailable. Based on the Semtech SX1302 chipset, it provides high packet processing capacity with optimized power consumption.

Operating in the 915 MHz ISM band, this LTE version enables secure cellular communication for remote buildings, temporary installations, and distributed industrial environments. Its lightweight form factor supports desktop, wall, or ceiling mounting, ensuring flexible deployment across indoor facilities.

Advantages

• Integrated 4G LTE (CAT 1) connectivity for autonomous deployment without Ethernet infrastructure
• 8 half-duplex LoRaWAN® channels supporting large-scale sensor networks
• High-performance SX1302 chipset for improved traffic handling and low power consumption
• Global LTE band support (L08GL version) suitable for international deployments
• Embedded Network Server for small standalone installations
• Compatible with major LNS platforms including The Things Stack, ChirpStack, and AWS IoT Core for LoRaWAN®
• Multi-backhaul capability with cellular and Ethernet redundancy

Main Features

• LoRaWAN® Channels: 8 (Half-duplex)
• Chipset: Semtech SX1302
• Receiver Sensitivity: up to -140 dBm
• Max TX Power: 27 dBm
• Frequency Band: US915 / AU915 (915 MHz ISM)
• Supported Devices: up to 2000 Class A/B/C devices (traffic dependent)
• Embedded Network Server: up to 20 devices
• Cellular Network: 4G LTE (CAT 1) / GSM fallback
• SIM Slot: 1 × Micro SIM (3FF)
• Ethernet Port: 1 × RJ45 10/100 Base-T
• Wi-Fi: 2.4 GHz AP mode (configuration only)
• Network Protocols: HTTP, HTTPS, MQTT
• VPN: OpenVPN Client
• Power Supply: 5V via Type-C / 5–12V DC / PoE via splitter (802.3af)
• Power Consumption: Typical 1.3 W, Max 3.1 W
• Ingress Protection: IP30
• Operating Temperature: -20°C to +50°C
• Dimensions: Ø115 × 21 mm (antenna excluded)
• Weight: 158.2 g (cellular version)

Typical Applications

• Remote commercial buildings without wired internet access
• Temporary or mobile IoT deployments
• Smart building and energy monitoring
• Parking facilities and logistics hubs
• Campus-wide LoRaWAN® coverage extension
• Industrial monitoring in distributed sites

Additional Information

The UG63-L08GL-915M combines LoRaWAN® performance and integrated LTE backhaul in an ultra-compact indoor gateway. It is particularly suited for Canadian and international IoT deployments requiring independent connectivity, rapid installation, and secure remote management. With support for mainstream network servers and embedded integration tools (MQTT API), it enables scalable Smart Building and industrial IoT architectures.
