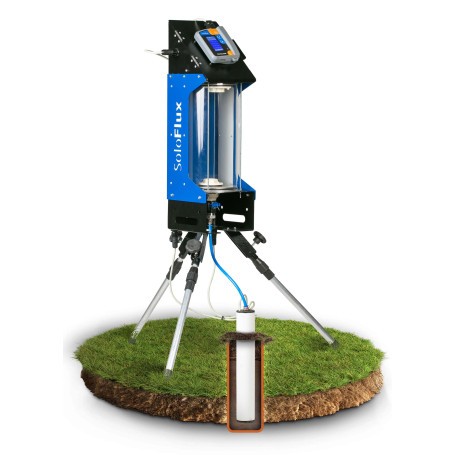

Automated Digital Permeameter : Soloflux | Falker

SoloFlux is a digital automated permeameter, the ideal tool for measuring hydraulic conductivity and understanding soil water dynamics. This innovative equipment measures water flow in soil digitally and automatically, making data collection much more convenient and evaluation more intuitive. What was once tedious work requiring on-site monitoring by a skilled technician is now faster with SoloFlux's automatic data collection and recording.

Principle of Hydraulic Conductivity Measurement

Hydraulic conductivity is a variable associated with the ease of water movement, expressing the physical structural quality of soil. Water movement in soil is directly influenced by macroporosity, varying according to the volume, size, continuity, tortuosity, and interconnection of the soil's porous system.

Hydraulic conductivity is inversely proportional to penetration resistance. Soil compaction reorganizes particles, increasing density due to reduced soil volume and air expulsion from pores. Soil compaction reduces the volume of macropores. With this reduction, soil microporosity increases, leading to greater water storage in the soil. In this way, soil hydraulic conductivity can be used to characterize abrupt changes in macroporosity.

Standard Package Includes :

• SoloFlux device
• Data logger
• Measurement kit
• General mounting rod
• Dutch auger
• Cup auger
• Well brush
• Cleaning accessories
• Foldable water container
• USB-A/USB-C cable

Benefits :

• Time-saving
• More convenient
• Automated recordings

Technical Specifications :

• Reservoir volume: 4.6 L
• Maximum measurement depth: 60 cm (greater depths available upon request)
• Applicable hydraulic load: 5 and 10 cm
• Measurement resolution: 0.1 mm of water
• Accuracy: ± 0.5 mm of water
• Power: Rechargeable internal battery with USB-C connector
• User interface: Graphic LCD screen with backlight + sound indication
• Weight: 7 kg
• GPS receiver: Integrated
• Communication: USB and Bluetooth
• App/Web: Falker Flow
