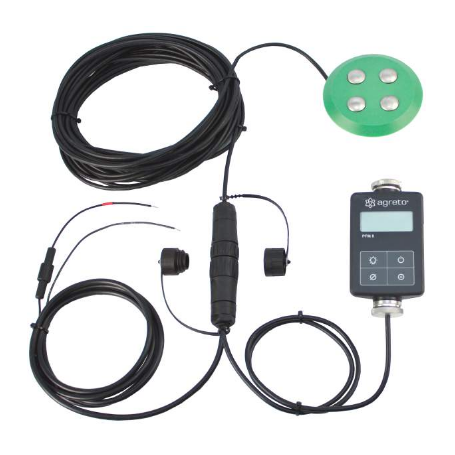

PFM II measures hay and straw moisture during baling, displaying readings directly to help operators monitor crop conditions.
PFM II measures hay and straw moisture during baling, displaying readings directly to help operators monitor crop conditions.
Integrated directly into hay and straw balers, this device enables the user to see the moisture content of the crop as soon as it is baled, so that he can react immediately. The sensors are connected to a device that displays the moisture content in units for the farmer.
| Display | Backlit LCD |
| Digit height | 13 mm |
| Moisture range | 9 to 70 % |
| Resolution | 0.1 % |
| Accuracy | 0.8 % |
| Power supply | 12 V DC |
| Weight | 1.580 g |
| Display dimensions (with bracket) | 70 x 131 x 62 mm (W-H-D) |
| Sensor plate dimensions | 110 mm diameter x 8 mm height |
| Box dimensions | 318 x 226 x 54 mm (W-H-D) |
Round and squared balers.
Confirm the required measurement depth, penetration resistance range and cone configuration. Consider whether individual spot measurements or repeated field mapping are needed.
