Soil Carbon Flux Analyzer – Portable Automatic Measurement System: PS-9000 | LICA UNITED TECHNOLOGY LTD

PS-9000 is a portable automatic soil carbon flux analyzer for field measurements and soil respiration research.

PRICE ON REQUEST

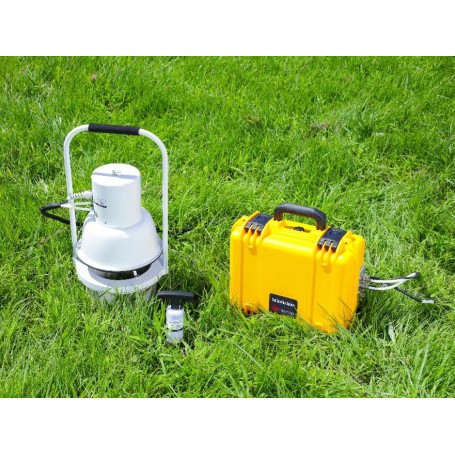

The PS-9000 Portable Soil Carbon Flux System is an advanced field instrument designed to accurately measure CO₂ flux between soil and atmosphere using the dynamic chamber method. It integrates control, measurement, data storage, and processing into a single unit, enabling researchers to perform real-time, in-field monitoring of CO₂ concentration changes. By including sensors for air temperature, barometric pressure, and soil temperature, the PS-9000 ensures precise, consistent, and reproducible data for agronomic, environmental, and climate studies.

Advantages

High-precision and repeatable measurements using NDIR (Non-Dispersive Infrared Absorption) technology.
Simple, one-click interface for fast configuration and immediate results.
Compact and lightweight design ideal for outdoor research campaigns.
Low power consumption allowing extended operation on battery power.
Instant data display and automatic storage without post-processing.
Wireless operation and data transfer via Wi-Fi, RS-232, and SDI-12 interfaces.

Main Specifications

PS-9000 Control Unit
Measurement principle	Non-Dispersive Infrared Absorption (NDIR)
Measuring range	CO₂ : 0 – 6000 ppm \| H₂O : 0 – 60000 ppm
Accuracy	< 1 % of reading
Repeatability / Precision	< 1 ppm
Operating temperature	-20 °C to +60 °C
Power requirements	< 40 W \| 12 V < 0.5 A
Storage medium	SD card
Communication interface	Wi-Fi, RS-232, SDI-12
Flow rate	3 L/min
Battery type	24 V – 8 Ah lithium battery
Battery life	Not less than 5 hours (one battery)
Dimensions	37 × 30 × 16 cm
Weight	7.3 kg (including battery)

SC-12 Soil Survey Chamber
Measuring area	276.27 cm²
Chamber volume	3451.00 cm³
Cable length	2 m
Power requirements	< 2.2 W
Dimensions	27.5 × 24.5 × 44.5 cm
Weight	3.85 kg

LI-520A Soil Temperature and Humidity Sensor
Humidity range	0 – 100 %
Accuracy	±2 % (0–50 %) \| ±3 % (51–100 %)
Temperature range	-30 °C to +70 °C
Temperature accuracy	±0.5 °C
Communication mode	SDI-12
Cable length	2 m

Typical applications

Agronomic research – soil respiration studies, soil carbon balance, and fertilizer impact analysis.
Environmental monitoring – greenhouse gas (GHG) emission measurements and climate modeling.
Forestry and ecology – soil-plant interaction and ecosystem health assessment.
Educational and research programs – soil science and environmental studies in universities.

Why Choose the PS-9000

The PS-9000 provides a perfect balance between accuracy, usability, and durability. For Canadian researchers and institutions, it offers a reliable solution for long-term CO₂ flux measurements in diverse conditions – from frozen boreal soils to agricultural field trials. Supported by ES Canada’s local technical team, users benefit from expert guidance, long-term service, and guaranteed measurement integrity.

What should you check before choosing this product?

Confirm the target gas, concentration range and sample conditions. Check the sampling arrangement, measurement technology and required interfaces for the intended installation.
