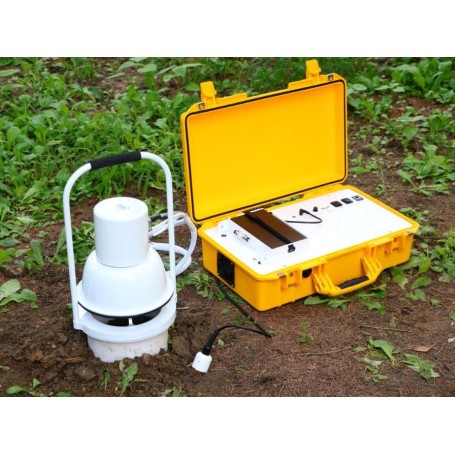

Soil Greenhouse Gas Flux Analyzer – Portable Measurement System: PS-9600 | LICA UNITED TECHNOLOGY LTD

PRICE ON REQUEST

The PS-9600 Portable Soil Greenhouse Gas Flux System is a state-of-the-art solution for monitoring soil emissions of greenhouse gases such as CH₄, CO₂, and H₂O. Using CRDS (Cavity Ring-Down Spectroscopy) laser technology, it provides ppb-level precision and allows researchers to quantify soil gas fluxes with outstanding accuracy and stability. Designed for field applications, the PS-9600 delivers continuous concentration and flux measurements to support research on carbon cycles, ecosystem balance, and climate change mitigation.

Advantages:

Simultaneous measurement of CH₄, CO₂, and H₂O with high precision.
Laser-based CRDS technology ensures exceptional stability and ppb-level accuracy.
Fully autonomous operation – no computer required; control and display via mobile application.
Instant data visualization and storage – no post-processing needed.
Lightweight and portable design with shoulder strap for easy field use.
Battery-powered (DC lithium), ensuring mobility and autonomy for extended measurements.
Energy-efficient operation with only 35 W power consumption.

Main Specifications:

Greenhouse Gas Analyzer
Precision (1σ, 10 s / 100 s)	CH₄: ≤1.2 ppb / 0.6 ppb \| CO₂: ≤200 ppb / 150 ppb \| H₂O: ≤65 ppm / 40 ppm
Measurement range	CH₄: 0–100 ppm \| CO₂: 0–10,000 ppm \| H₂O: 0–3%
Linearity	CH₄ R² ≥ 0.9998 \| CO₂ R² ≥ 0.9999 \| H₂O R² ≥ 0.999
Operating temperature	-20 °C to +50 °C
Data storage	SD card
Interface	RS-232 / SDI-12 / Wi-Fi
Dimensions	55.38 × 35.5 × 19 cm
Weight	8 kg

SC-12 Portable Soil Flux Chamber
Size	275 × 245 × 445 mm
Measurement area	276.27 cm²
Cable length	2 m
Chamber switching speed	≤ 10 s
Air temperature and humidity sensor range	-25 °C to +85 °C
Measurement precision	±0.2 °C
Weight	4.05 kg

Typical Applications:

Environmental monitoring – continuous observation of greenhouse gas emissions from soils and ecosystems.
Agronomic research – assessment of soil respiration, carbon balance, and methane emissions in agricultural zones.
Climate science – quantification of soil contributions to global greenhouse gas inventories.
Forestry and ecology – tracking fluxes in wetland, forest, and tundra ecosystems.

Why Choose the PS-9600:

The PS-9600 offers a unique combination of portability, precision, and autonomy for field-based greenhouse gas monitoring. Its CRDS laser technology ensures reliable measurements even in variable Canadian weather conditions. Designed for both research institutions and environmental monitoring agencies, it supports projects aligned with carbon neutrality and climate goals. With ES Canada’s expertise and local support, users benefit from professional guidance, installation assistance, and lifelong technical service.
