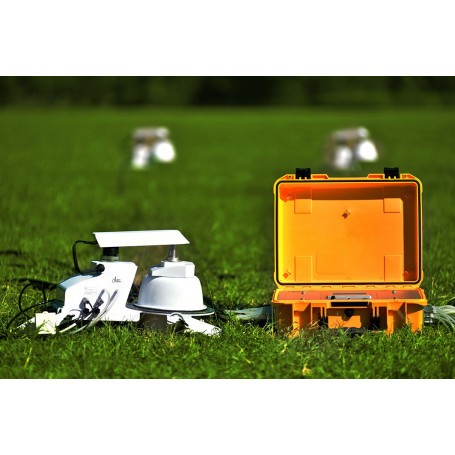

Multi-Channel Soil Carbon Flux Automatic Measurement System: SF-9000 | LICA UNITED TECHNOLOGY LTD
The SF-9000 Multi-Channel Soil Carbon Flux Automatic Measurement System, developed by LICA United Technology, is a high-performance instrument designed for multi-point, long-term, and automatic monitoring of soil CO₂ flux.
PRICE ON REQUEST
The SF-9000 Multi-Channel Soil Carbon Flux Automatic Measurement System, developed by LICA United Technology, is a high-performance instrument designed for multi-point, long-term, and automatic monitoring of soil CO₂ flux. It enables precise quantification of carbon exchanges between the soil and atmosphere, providing valuable insights into soil respiration, ecosystem carbon balance, and environmental change. The system supports up to 18 soil chambers operating simultaneously and automatically calculates gas flux without any post-processing, ensuring continuous and unattended operation for extended field campaigns.
Advantages:
- Multi-channel architecture – supports up to 18 soil chambers for simultaneous monitoring across multiple sites.
- Automatic operation – long-term and unattended monitoring with built-in data processing.
- Accurate CO₂ and H₂O measurement using non-dispersive infrared absorption (NDIR) technology.
- High-capacity data logging with SD card storage and multiple communication interfaces.
- Integrated 5-inch LCD touchscreen for easy setup and real-time visualization.
- Energy-efficient and durable design, suitable for continuous outdoor operation.
- Optional environmental sensors for soil temperature, humidity, and barometric pressure measurement.
Main Specifications:
SF-9000 :
| Parameter | SF-9000 Control Unit |
|---|---|
| Measurement principle | Non-Dispersive Infrared Absorption (NDIR) |
| Measured gases | CO₂ and H₂O |
| CO₂ range | 0 – 6000 ppm |
| H₂O range | 0 – 60000 ppm |
| Accuracy | Less than 1 % of reading |
| Repeatability / Precision | Less than 1 ppm |
| Operating temperature | −20 °C to +60 °C |
| Number of chambers | 9 or 18 |
| Storage medium | SD card |
| Communication interfaces | RS-232 / RS-485 / SDI-12 |
| Synchronous pump | 4.2 L / min |
| Display | 5-inch LCD touchscreen |
| Operating range | Temperature −20 to +60 °C, Humidity 0–95 % RH (non-condensing) |
| Dimensions | 51 × 40 × 19 cm |
| Weight | 14.1 kg |
SC-22 :
| Parameter | SC-22 Automatic Long-Term Soil Chamber |
|---|---|
| Measurement area | 276.27 cm² |
| Chamber volume | 3243.8 cm³ |
| Cable length | 15 m |
| Operating temperature | −20 °C to +60 °C |
| Barometric pressure detection | 15 – 115 kPa (±1.5 %) |
| Temperature detection | −25 °C to +85 °C (±0.5 °C) |
| Dimensions | 55 × 28 × 32 cm |
| Weight | 8.55 kg |
LI-520A :
| Parameter | LI-520A Soil Temperature and Humidity Sensor |
|---|---|
| Humidity range | 0 – 100 % RH |
| Accuracy | ±2 % (0–50 %) / ±3 % (51–100 %) |
| Temperature range | −30 °C to +70 °C |
| Temperature accuracy | ±0.5 °C |
| Communication mode | SDI-12 |
| Cable length | 2 m |
Typical Applications:
- Carbon cycle studies – continuous monitoring of soil CO₂ emissions in forests, grasslands, and agricultural lands.
- Environmental research – quantifying soil respiration and evaluating carbon balance in climate studies.
- Agricultural science – measuring CO₂ and H₂O fluxes to optimize soil management practices.
- Climate change monitoring – long-term carbon flux observation for carbon neutrality and ecosystem modeling.
Why Choose the SF-9000:
The SF-9000 combines multi-channel automation, precise gas analysis, and rugged design for long-term field operation. It provides a cost-effective and scalable solution for research institutions seeking to measure soil carbon flux at multiple sites simultaneously. With automatic data calculation and remote control capability, it minimizes human intervention while maintaining scientific accuracy. Supported by ES Canada’s environmental instrumentation team, the SF-9000 ensures reliable performance, expert assistance, and lifetime technical support.
