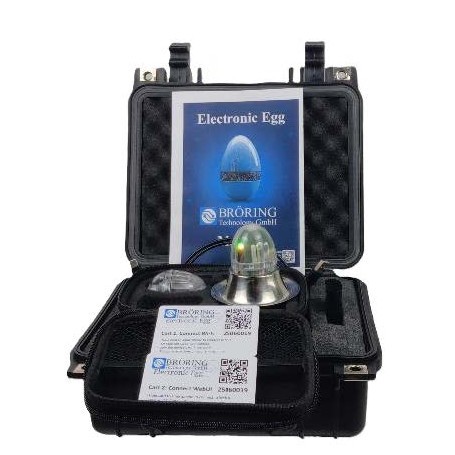

Electronic Egg | Broring Technology GmbH

This egg replica has been designed to identify problem areas and risks in your production line and thus prevent damage to eggs.
The electronic egg helps reduce your losses, decrease rework, and optimize your production efficiency while allowing you to save costs.
By adopting the electronic egg: improve your efficiency, reduce your egg losses and ensure a smoother and faster transport system!

Operating procedure:

Place the electronic egg in your conveyor, next to real eggs.
As it moves through your system, it can detect and record impacts.
If predefined thresholds are exceeded, its LED sensors will light up.
The complete transport process is recorded, allowing you to quickly and effectively prevent any problems.

Technical specifications:

• Measurement range: 0 to 25.4 G
• Sampling frequency: 5376 measurements per second
• Storage frequency: 10 measurements per second
• Storage capacity: 10 hours (10 bytes per second)
• Battery life at full charge: up to 4 hours
• 440 mAh battery, USB-C port
• Wi-Fi connection "Electronic Egg (XXXXXXXX)" (2.4 GHz 802.11 b/g/n)

LED indicators:

• ● Green (low impact)
• ● Yellow (moderate impact)
• ● Red (high impact)

Connection: QR Card codes and NFC tags for easy WiFi connection and WebUI access

Advantages:

• Records impacts in 3 dimensions
• Data is stored for later analysis
• The integrated server allows easy access via Wi-Fi, so no specific software installation is required
• Data visualization on iOS, Android or Windows via any web browser
• Log files exported in PDF or CSV format for quick reports
• Intuitive visualization via LED color signals (green-yellow-red) for immediate shock detection
• Immediate overview of its effectiveness
• Real-time monitoring: measures shocks, vibrations, rotations and tilts during egg transport
• Impact on profitability
