Compact Fixed AV-Flowmeter measures flow in open channels and part-filled pipes, with ultrasonic sensing, data logging and a 4–20 mA output.

PRICE ON REQUEST

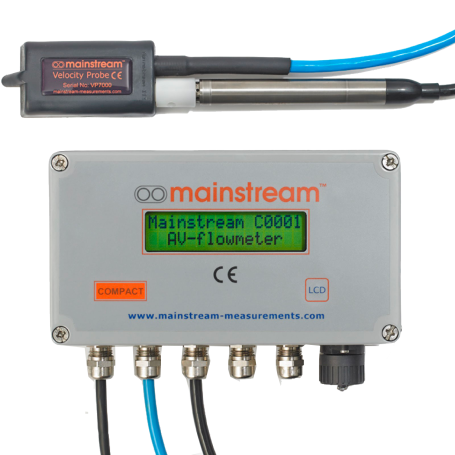

The Compact Fixed AV-Flowmeter is a high-performance fixed installation area-velocity flowmeter designed for basic open channel and part-filled pipe applications. It combines an immersed ultrasonic velocity sensor with level measurement to calculate flow rate continuously or by time sample. The system is intended for fixed monitoring points requiring reliable hydraulic measurement, integrated data logging, and straightforward industrial integration.

Advantages

  • Fixed-installation design for permanent monitoring locations
  • Area-velocity measurement method for open channels and part-filled pipes
  • No need for weirs or flumes, simplifying installation
  • Velocity measurement from 10 mm/s to 5 m/s for low to moderate flow conditions
  • High sensitivity ultrasonic sensing suitable for relatively clean water applications
  • Integrated 4 MB flash data logger with long-term retention and rapid retrieval
  • Smart power saving mode that adapts measurement time to signal and flow conditions
  • Signal quality monitoring with automatic recording of velocity signals and histograms
  • One configurable 4–20 mA output for simple process integration
  • Compact enclosure for constrained installation environments

Main Features

Measurement principle area-velocity flow measurement
Velocity method phase coherence time delay measurement
Velocity sensor submerged ultrasonic sensor with integrated electronics
Velocity range from -5 m/s to -10 mm/s and from 10 mm/s to 5 m/s
Velocity resolution better than 1 mm/s
Level input compatible with any 4–20 mA current loop level sensor
Derived measurements area, flow rate, and forward, reverse, and total flow quantities
Data logger 4 MB flash memory, configurable recording from 15 seconds to 1 hour
Data export spreadsheet-compatible CSV files
Local communications RS232 and USB compatible interface with automatic baud rate detection
Remote communications optional external SDI or GPRS device
Analog output one configurable 4–20 mA output
Switch outputs two opto-isolated outputs rated at 60 V ac/dc and 200 mA maximum current
Power supply external 12 V and 24 V supplies
Velocity sensor protection IP68
System enclosure IP67 with encapsulated electronics to IP68
System unit dimensions 220 x 120 x 80 mm
System unit weight 1.9 kg

Typical applications

  • Effluent monitoring
  • Wastewater treatment systems
  • Industrial flow measurement
  • Irrigation channels and canals
  • River and stream flow monitoring
  • Water distribution networks
  • Sewer flow measurement including inflow and infiltration and CSO monitoring
  • Fixed-site flow measurement with weirs and flumes

Why choose Compact Fixed AV-Flowmeter

The Compact Fixed AV-Flowmeter is a practical solution for users who need reliable permanent flow monitoring without the extended feature set of more advanced systems. Its combination of immersed ultrasonic velocity sensing, level-based area calculation, compact hardware, and integrated data logging makes it well suited for standard hydraulic monitoring points where durability, measurement integrity, and straightforward integration are essential.

What should you check before choosing this product?

Check the pipe or channel geometry, flow conditions and sensor installation requirements. Confirm the measurement range, output interfaces and power supply for the intended monitoring point.
