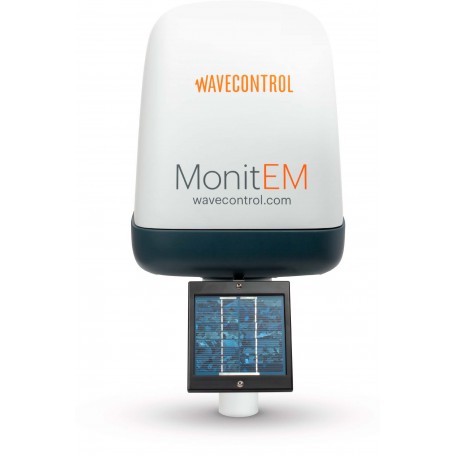

Electromagnetic field monitoring system - 24/7 broadband monitoring and 5G-ready: MonitEM | Wavecontrol

The MonitEM system is designed for 24/7 monitoring of electromagnetic field levels and for verifying compliance with safety standards defined by competent authorities.

It can be used to monitor EMF radiation from multiple source types and sectors, including cellular networks, broadcast systems, 50/60 Hz power systems, industry and radar applications.

Depending on the selected field probe, MonitEM supports broadband measurements from 10 Hz up to 90 GHz. Measurements can also be published on the Internet when used with the optional Control Center.

Advantages

• Continuous EMF monitoring: designed for permanent electromagnetic field surveillance, 24 hours a day, 7 days a week.
• Broadband measurement capability: supports frequency coverage from 10 Hz to 90 GHz, depending on the selected probe.
• 5G-ready operation: suitable for monitoring 5G frequency bands with compatible probes.
• ITU K.83 compliance: designed for EMF monitoring applications aligned with ITU K.83 requirements.
• Outdoor deployment: IP66 protection rating for resistance to harsh weather conditions, including rainfall, high temperatures and dust.
• Easy installation: compatible with wall, mast or tripod installation kits.
• Flexible power options: available with solar, AC or combined solar + AC power supply configurations.
• Remote management: optional Control Center enables remote system and data management through a web browser.

Main characteristics

• Sensor type: isotropic RMS sensor with simultaneous 3-axis measurement.
• Field probes: compatible with E-Field, H-Field and E&H Field probes.
• Frequency range: from 10 Hz to 90 GHz, depending on the selected field probe.
• Sampling frequency: 500 ms.
• Averaging: custom sliding window, with 6 minutes as default setting.
• Online data retention period: from 1 to 60 minutes.
• Offline data retention period: configurable from 1 second to 60 minutes.
• Memory: Eeprom and MicroSD.
• Wireless communication: 3G/GPRS modem or 4G/3G/GPRS modem, depending on configuration.
• Power supply options: solar, AC or solar + AC configurations.
• Operating log: temperature, communications, power supply, operating modes and related system parameters.
• Battery life: more than 20 days without sun, based on 0.5 s sampling, 1 daily transmission and no alarms.
• Operating temperature: -25 °C to +60 °C.
• Dimensions: 253 mm x 292 mm x 385 mm.
• Weight: 3.6 kg, including solar panel.
• Environmental protection: IP66.
• Installation kits: wall, mast or tripod.
• GPS: built-in high-sensitivity WGS84 device.
• Certifications: ISO 9001 quality management referenced for the manufacturer.

Compatible field probes

MonitEM is compatible with a full range of E-Field, H-Field and E&H Field probes. The probes are plug and play and supplied with individual ISO 17025 accredited calibration. All sensors are isotropic, RMS and designed for accurate EMF measurements.

• WPF3: E-Field probe, 100 kHz - 3 GHz.
• WPF6: E-Field probe, 100 kHz - 6 GHz.
• WPF8: E-Field probe, 100 kHz - 8 GHz.
• WPF18: E-Field probe, 300 kHz - 18 GHz.
• WPF40: E-Field probe, 1 MHz - 40 GHz.
• WPF60 / WPF60S: E-Field probe, 1 MHz - 60 GHz.
• WPF90: E-Field probe, 30 MHz - 90 GHz.
• WP50: E&H Field probe, 10 Hz - 3 kHz.
• WPH60: H-Field probe, 300 kHz - 60 MHz.
• WPH1000: H-Field probe, 30 MHz - 1000 MHz.

Typical applications

• Telecommunications: continuous monitoring of EMF levels generated by cellular networks and related infrastructure.
• Industry: permanent electromagnetic field surveillance around industrial installations.
• Energy: monitoring of EMF radiation from 50/60 Hz power systems and energy infrastructure.
• Radar and aerospace: monitoring of electromagnetic emissions from radar or aerospace-related systems.
• Medical environments: EMF monitoring in areas where electromagnetic exposure control is required.
• Public reporting: publication of EMF monitoring results through Internet-based platforms and automated reports.

Why choose MonitEM

MonitEM is a complete solution for permanent electromagnetic field monitoring, combining outdoor measurement hardware, broadband field probes and optional web-based data management.

Its IP66 protection rating, solar power option, wireless communication and integrated GPS make it suitable for long-term deployment in demanding outdoor environments.

With compatible probes covering 10 Hz to 90 GHz, MonitEM can be adapted to a wide range of EMF monitoring requirements, from low-frequency power systems to RF and 5G-related applications.

The optional Control Center adds remote configuration, data storage, alarm management and automated reporting, making the system suitable for technical authorities, operators, laboratories and organizations requiring traceable EMF surveillance over time.
