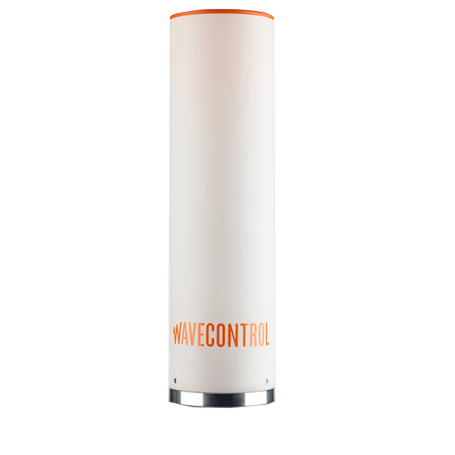

Indoor EMF monitoring system - 24/7 broadband measurements up to 90 GHz: MonitEM-Lab | Wavecontrol

The MonitEM-Lab is an indoor electromagnetic field monitoring system designed for 24/7 monitoring of EMF levels in laboratories, manufacturing sites and other technical facilities.

It is used to monitor emitter performance, detect unwanted emissions and verify human safety levels. Measurements can be stored locally or managed remotely through an optional Control Center with Internet or Intranet access.

The system supports broadband measurements from 100 kHz to 90 GHz, depending on the field probe used. It is compatible with interchangeable isotropic RMS probes and is ready for monitoring 5G frequency bands.

Advantages

• 24/7 EMF monitoring for indoor facilities, laboratories and technical environments.
• Broadband measurements from 100 kHz to 90 GHz depending on the selected probe.
• Isotropic RMS measurement with simultaneous 3-axis acquisition.
• Interchangeable probe system for adapting the monitoring range to the application.
• Local storage or remote management depending on the monitoring configuration.
• Ethernet communication for integration into site networks.
• Visual and audible alarms for real-time local warning.
• ITU-T K.83 compliant and ready for 5G band monitoring.
• Optional Control Center for remote system configuration, data management and reporting.
• Flexible installation as a stand-alone unit or mounted on a wall, mast or tripod.

Main characteristics

• Product: MonitEM-Lab
• Monitoring type: Indoor electromagnetic field monitoring
• Sensor type: Isotropic, RMS
• Measurement axes: Simultaneous 3-axis measurement
• Probe system: Interchangeable
• Probe frequency range: 100 kHz to 90 GHz
• Sampling frequency: 500 ms
• Averaging: 6-minute or custom sliding window
• Online data retention: From 1 to 60 minutes
• Offline data retention: Configurable from 1 second to 60 minutes
• Memory: EEPROM + MicroSD card
• Communication: Ethernet
• Operating log: Temperature, communications, power supply, operating modes and other operating parameters
• Power supply: AC 110–220 V
• Watchdog: Smart power control unit with ON/OFF button
• Dimensions: 445 x Ø 120 mm
• Weight: 2.4 kg
• Environmental protection: Not yet available
• Installation kits: Wall, mast or tripod
• Alarms: Configurable audible and visual alarms
• Alarm sound control: Sound can be stopped by an external switch

Typical applications

• Telecommunications: Indoor monitoring of EMF levels generated by communication systems and RF emitters.
• Laboratories: Continuous monitoring in test, validation and research environments.
• Radar and aerospace: EMF monitoring around dedicated emission sources and technical installations.
• Industry: Monitoring of unwanted emissions and verification of emitter performance in manufacturing facilities.
• Medical environments: Monitoring of electromagnetic field levels in facilities using RF or electromagnetic sources.

Why choose MonitEM-Lab

The MonitEM-Lab provides a permanent indoor monitoring solution for electromagnetic field levels in technical facilities. Its interchangeable probe architecture allows the monitoring range to be adapted to different RF and EMF environments, with broadband measurement capability from 100 kHz to 90 GHz depending on the selected probe.

The system combines isotropic RMS measurement, simultaneous 3-axis acquisition, local storage, Ethernet communication and configurable alarms. With the optional Control Center, MonitEM-Lab can also be used for remote configuration, data consultation, report generation and long-term monitoring management.
