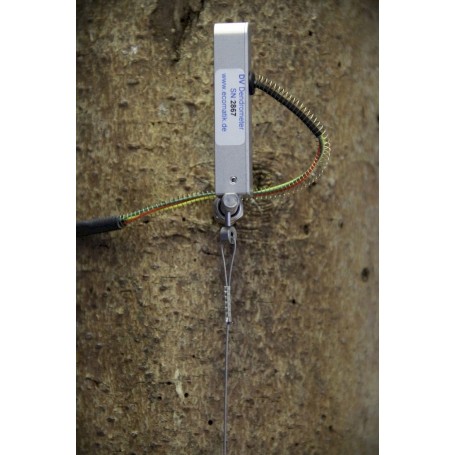

Vertical dendrometer : DV | Ecomatik

The DV dendrometer is used for high-precision and continuous measurement of vertical changes in dimension and/or curvature of tree stems. This device is suitable for long-term in outdoor conditions. Due to their extremely low power consumption, Ecomatik dendrometers are ideal for battery-powered solutions, e.g., in IoT applications.

Request a quote
PRICE ON REQUEST

The DV dendrometer is used for high-precision and continuous measurement of vertical changes in dimension and/or curvature of tree stems. This device is suitable for long-term in outdoor conditions. Due to their extremely low power consumption, Ecomatik dendrometers are ideal for battery-powered solutions, e.g., in IoT applications.

The DV dendrometer is designed to continuously measure vertical changes (not growth) of trees. Tree stems and their respective sections vary in length and curvature, according to water status (short- to mid-term), wind direction and wind speed (short-term to permanent), snow and fruit load (mid-term to permanent), and unbalanced growth or loss of crown parts (long-term to permanent). Transcription of vertical changes, along with their directional information, provides valuable information to assess water status and static properties of a tree (stress-strain relationship, mechanical load/stability, etc.). Parallel measurements with three vertical dendrometers (each oriented in three different cardinal directions) are necessary for a complete overview of vertical changes.

Advantages

  • Stress-strain relationship computation
  • Maximum stability against wind, snow, falling branches and fruit
  • Ideal for long-term measurements

Sensor model name

Vertical Dendrometer

Type DV

Scope of application

Stems or branches

Suitable for diameter

5 – 32 cm

Special features/limitations

2x trunk screws for mounting

Measurement range

11 mm linear

Resolution

Data logger dependent e.g.:

CR300 series: 0.01 µm

Dendrometer logger DL18: 0.2 µm

Accuracy

Dendrometer dependent: max. ± 4.5% of the measured value (stable offset)

Data logger dependent e.g.:

CR300 series: ± (0.04% of the measured value + 0.3 µm)

Dendrometer logger DL18: ± (0.1% of the measured value + 0.45 µm)

Output signal

Analogue, 0V to Vex (excitation supply voltage)

Temperature drift of the sensor

< 0.2 µm/°C in the whole measurement range

Temperature coefficient of the stem embracing cable wire

< 1.4 ×10-6/K

Linearity

< 1%

Operational conditions

Normal outdoor field conditions, -25 to 70 ° C, 0 to 100% relative air humidity; unsuitable underwater and below snow cover

Weight (sensor without cable)

13 g

Power supply

Vex (! stabilized !) 0.5 to 10 VDC,

Power consumption max. 0.28 µWh per measurement

Material

Stainless steel and aluminium
