Combi Dendrometer | Ecomatik

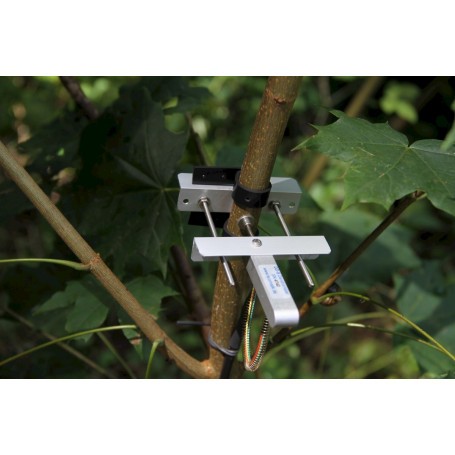

The ECOMATIK Combi Dendrometer is a growth dendrometer designed for continuous monitoring of plant dimensional variations, from very young shoots to large-diameter trees. It uses one sensor combined with two interchangeable mounting systems, enabling measurements on both small and large plants with the same sensor.

Two configurations are available—DD-S2/DR7 and DD-S3/DR6—with measurement ranges adapted to different plant sizes.

Advantages

• One sensor for two applications: small and large plants
• Continuous, long-term growth monitoring
• Very high resolution (dependent on the data acquisition system)
• High stability and low thermal drift
• SDI-12 compatibility and analog output

Main Specifications

• Measured parameter: dimensional variation (µm)
• Measurement range:
  • DD-S2 / DR7: 11 mm
  • DD-S3 / DR6: 25.4 mm
• Resolution (datalogger-dependent):
  • DL18: up to 0.2 µm
  • CR1000: up to 1.5 µm
• Accuracy:
  • DD-S2/DR7: max. ±4.5% of reading
  • DD-S3/DR6: max. ±1.97% of reading
• Temperature coefficient: < 0.2 µm/°C
• Linearity:
  • < 1% (DD-S2/DR7)
  • < 0.7% (DD-S3/DR6)
• Outputs:
  • Digital: SDI-12
  • Analog: 0 – Vex
• Power supply: stabilized Vex 0.5 to 10 VDC, near-zero power consumption
• Environmental conditions: -25 to +70 °C, 0 to 100% RH
• Materials: stainless steel and aluminum
• Cable length: 5 m, extendable up to 100 m

Typical Applications

• Plant growth studies
• Plant ecophysiology research
• Tree and crop growth monitoring
• Long-term environmental measurements
• Scientific and agronomic programs

Why Choose the Combi Dendrometer

The Combi Dendrometer provides precise, continuous plant growth tracking in a single, versatile solution. With two interchangeable mounting systems, it supports monitoring from juvenile stages through maturity while maintaining excellent stability in demanding outdoor conditions.
