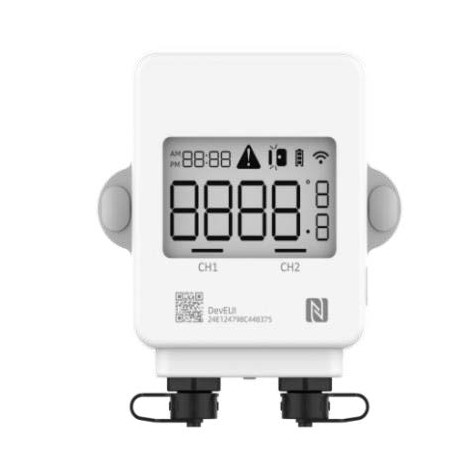

Temperature Sensor with LoRaWAN Technology : TS30x | Milesight

The TS30x is equipped with high-precision temperature probes and an IP65 waterproof enclosure, suitable for harsh environments. It supports automated temperature monitoring and anti-tamper data recording, compliant with HACCP and 21 CFR Part 11B requirements. It is EN12830 certified for cold chain applications. The TS30x is designed for easy integration with Milesight LoRaWAN® gateways and the Milesight IoT Cloud solution, allowing users to manage all sensor data remotely and visually.

Advantages :

• Option of five types of high-precision PT100 temperature probes and one magnetic contact switch sensor.
• IP65 waterproof enclosure with dust plug, suitable for harsh environments.
• Automated temperature monitoring and anti-tamper data recording, compliant with HACCP and 21 CFR Part 11B requirements.
• EN12830 certified for cold chain applications.
• Simplified PDF data export for easy documentation without complex paperwork.
• Two large-capacity replaceable batteries for extended battery life.
• Low-consumption LCD display for intuitive data reading.
• Storage of up to 10,000 historical records locally and retransmission to prevent data loss.
• Equipped with NFC and USB Type-C for quick and easy configuration.
• Works effectively with standard LoRaWAN® gateways and network servers.
• Compatible with Milesight IoT Cloud and Milesight Development Platform.

Main Features :

Wireless Transmission Technology

• LoRaWAN®
• Internal antenna
• Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Tx Power: 16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz)
• Sensitivity: -137dBm@300bps
• Mode: OTAA/ABP Class A

Connector

• Type: 5-pin M12 A-Coded Male Connector
• Number of connectors: 1 for TS301, 2 for TS302
• PT100 Connection: 3-wire connection
• PT100 Resolution: 0.1 °C

Display

• LCD Segment Code Screen
• Viewing Direction: 12 O’clock

Other Features

• Buttons: 1 Power Button (External) + 1 Reset Button (Internal)
• LED Indicator: 1 Status Indicator (Internal)
• USB: 1 Type-C Port for Power Supply, Configuration, and Debugging
• Power Supply: 2 × 4000 mAh ER18505 Li-SOCl2 Batteries or Type-C USB (5V/1A)
• Battery Life: Up to 5 years with one PT100 sensor, up to 10 years with a magnetic sensor
• Operating Temperature: -30°C to +70°C
• Relative Humidity: 0% to 95% (non-condensing)
• Ingress Protection: IP65
• Weight: 175 g (TS301), 185 g (TS302)
• Dimensions: 109.35 × 75 × 29 mm (4.31 × 2.95 × 1.14 in)
• Installation: Wall Screw Mounting, Magnetic Mounting (Optional)
• Approvals: CE, FCC, EN12830
• Environmental: RoHS

Applications :

• Temperature monitoring in food processing.
• Cold chain storage of food or medicine.
• Industrial applications requiring precise temperature monitoring.
• Temperature monitoring in harsh environments.
