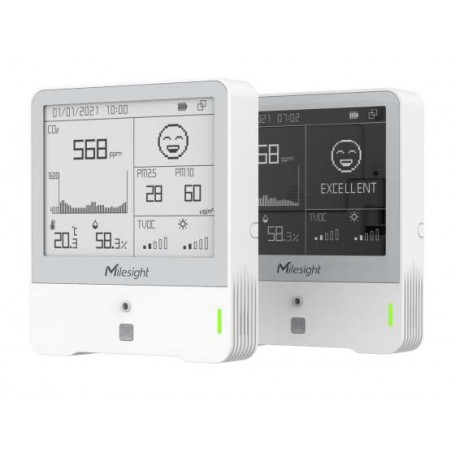

Indoor Air Quality Monitoring Sensors - LoRaWAN®, CO2, PM and Multi-Parameter Measurement: AM307 / AM308 / AM319 | Milesight

The LoRaWAN® indoor air quality and ambience monitoring sensors - comfort, CO2 and particulate monitoring: AM307 / AM308 / AM319 are designed for continuous indoor environmental monitoring in offices, classrooms, healthcare facilities, commercial buildings, laboratories and smart building applications.

The range covers several levels of indoor air quality monitoring. The AM307 is intended for core comfort and IAQ parameters, the AM308 adds particulate matter measurement, and the AM319 provides an advanced configuration with optional HCHO or O3 monitoring depending on the selected PN.

Data is transmitted through LoRaWAN®, enabling integration with standard LoRaWAN® gateways and remote monitoring platforms. The local E-Ink display, traffic light status indicator and buzzer provide direct on-site visibility of indoor conditions and threshold alarms.

Advantages

• One product range for several IAQ levels: from comfort monitoring to particulate and specific gas monitoring.
• LoRaWAN® wireless transmission: adapted to distributed building deployments with limited cabling requirements.
• Local display: real-time values shown on a 4.2-inch black and white E-Ink screen.
• Alarm visibility: traffic light indicator and buzzer for threshold-based alerts.
• Data continuity: local data storage and retransmission functions help prevent data loss.
• Flexible configuration: NFC mobile app, PC software, USB Type-C and downlink configuration depending on model.
• Simple installation: wall mounting with 3M tape or screws.

Main characteristics

• Wireless technology: LoRaWAN® communication for integration with compatible gateways and network servers.
• Supported frequency bands: CN470, RU864, IN865, EU868, US915, AU915, KR920 and AS923 variants depending on regional configuration.
• Temperature measurement: -20°C to 60°C with 0.1°C resolution.
• Relative humidity measurement: 0% to 100% RH with 0.5% RH resolution.
• CO2 monitoring: available on the three models, with NDIR technology for AM307 / AM308 and photoacoustic technology for AM319.
• TVOC monitoring: MOX sensor with IAQ rating; AM319 can also report concentration value up to 2000 µg/m³.
• Barometric pressure: 260 to 1260 hPa with 0.1 hPa resolution.
• Light measurement: 0 to 60000 lux, determined across six levels.
• Motion detection: PIR detection with vacant / occupied status.
• Particulate matter: PM2.5 and PM10 monitoring on AM308 and AM319 depending on PN.
• Specific gas options: AM319 supports optional HCHO or O3 sensor configurations depending on PN.
• Display: 4.2-inch black and white E-Ink screen for local data reading.
• Power supply: AM307 and AM308 support replaceable batteries or Type-C power supply; AM319 is powered by 5 V / 1 A via Type-C port.
• Ingress protection: IP30.
• Dimensions: 100.8 × 114 × 22 mm.
• Installation: wall mounting via 3M tape or screws.

Typical applications

• Indoor air quality monitoring in offices, schools, public buildings and healthcare facilities.
• Ventilation performance monitoring using CO2, temperature and humidity trends.
• Smart building deployments using LoRaWAN® gateways and remote dashboards.
• Occupancy-related comfort monitoring with PIR motion detection and local display.
• Particulate matter monitoring with AM308 and AM319 for PM2.5 / PM10 applications.
• Advanced IAQ applications with AM319 where HCHO or O3 monitoring is required.

Why choose “LoRaWAN® indoor air quality and ambience monitoring sensors - comfort, CO2 and particulate monitoring: AM307 / AM308 / AM319”

The AM307, AM308 and AM319 provide a coherent product range for indoor environmental monitoring projects. The AM307 is the appropriate choice for essential comfort and IAQ monitoring, the AM308 adds particulate matter measurement for PM2.5 and PM10 applications, and the AM319 supports more advanced IAQ requirements with optional HCHO or O3 configurations.

Their LoRaWAN® architecture is well adapted to multi-room, multi-floor and multi-building deployments, especially where wired infrastructure is limited or difficult to install. The combination of local display, alarms, historical data storage and remote monitoring helps technical teams follow indoor conditions over time.

ES Canada supports technical users in model selection, LoRaWAN® deployment strategy and integration into monitoring architectures, helping ensure that each installation is aligned with the target indoor air quality parameters and building constraints.
