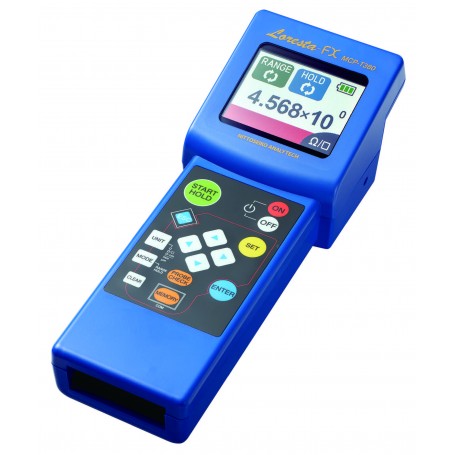

Portable Resistivity Meter – Wide Measurement Range: Loresta-FX MCP-T380 | Nittoseiko Analytech

The Loresta-FX MCP-T380 is a portable resistivity meter designed with a universal 4-terminal (4-pin) method, ensuring precise low resistivity measurement across a wide range from 10⁻² to 10⁸ Ω. With a user-friendly interface and clear LCD display, it enables quick and reliable measurements in both laboratory and production environments.

Advantages :

• Easy operation with one-touch automatic measurement.
• High accuracy ensured by the 4-pin measurement method eliminating contact resistance errors.
• Portable and lightweight design (approx. 350 g) for on-site measurements.
• Operates with NiMH rechargeable batteries or AC adapter for flexible use.
• Optional data logging software for PC connectivity and analysis.

Main Features :

• Measurement method: 4-terminal, 4-pin (no RCF function).
• Measurement range: 10⁻² to 10⁸ Ω.
• Modes: Auto (Auto Hold, Auto Range), Manual Range.
• Display: LCD with digital readout.
• Accuracy: ±1.0% (±5 digits) depending on range.
• Power supply: AC adapter or 4 × AA NiMH batteries.
• Dimensions: 228 × 105 × 85 mm.

Typical Applications :

• Process and quality control for conductive materials.
• Resistivity testing of conductive paints, inks, pastes, and plastics.
• Evaluation of transparent conductive films, ITO glass, EMI shielding materials.
• Characterization of conductive fabrics, ceramics, rubber, and antistatic materials.
• Testing of aluminum plating layers, zinc flashing, plated steel, magnesium alloys.
