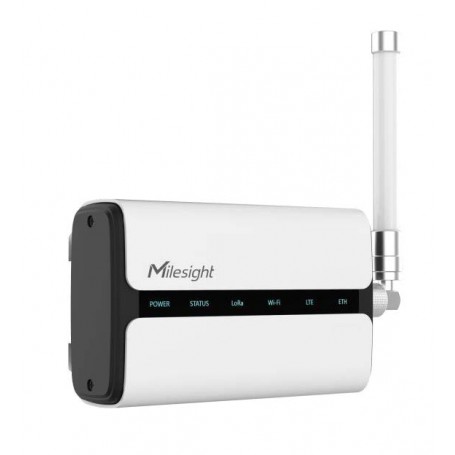

LoRaWAN® Gateway – 8-channel indoor with multi-backhaul connectivity : UG65 | Milesight

The UG65 is a semi-industrial 8-channel LoRaWAN® indoor gateway designed for high-density IoT deployments in smart buildings and enterprise environments. Based on the SX1302 LoRa® chipset and a quad-core industrial processor, it supports more than 2,000 end devices while maintaining low power consumption and high reliability.

With flexible Ethernet, Wi-Fi and 4G LTE backhaul options, as well as integrated network server capabilities, the UG65 enables fast deployment and scalable LoRaWAN® infrastructure for professional IoT projects across North America.

Key Benefits

• High device capacity: supports up to 2,000 LoRaWAN® nodes
• 8 half/full-duplex channels for dense sensor networks
• Multi-backhaul redundancy: Ethernet, Wi-Fi and LTE (CAT-1)
• Integrated network server for rapid commissioning
• Advanced security with VPN support (IPsec, OpenVPN, WireGuard, etc.)
• Industrial reliability with IP65 enclosure
• Low power consumption for continuous operation
• Easy integration with IT and OT systems (MQTT, BACnet, Modbus)

Main Technical Characteristics

• LoRaWAN®
  • Channels: 8 (half/full-duplex)
  • Frequency bands: US915 / AU915 / KR920 / AS923-1&2&3&4
  • Sensitivity: -140 dBm @ 292 bps
  • Tx power: up to 27 dBm
  • Protocol: LoRaWAN® v1.0 and v1.0.2, Classes A/B/C
• Processing
  • CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
  • Memory: 512 MB DDR4 RAM
  • Flash: 8 GB eMMC
• Connectivity
  • Ethernet: 1 × RJ45 WAN (PoE PD supported), 10/100/1000 Base-T, Auto MDI/MDIX, 1.5 kV RMS isolation
  • Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz), internal antenna
  • Cellular: 4G LTE (CAT 1), bands B2/4/5/12/13/66, mini SIM (2FF)
• Power
  • Inputs: 9–24 V DC (jack), 802.3af PoE, USB-C (5 V / 1 A)
  • Consumption: typical 2.9 W, max 4.2 W
• Mechanical & Environmental
  • Ingress protection: IP65
  • Material: PC+ABS (UL94 V0)
  • Dimensions: 180 × 110 × 55.5 mm
  • Weight: 548 g
  • Operating temperature: -40 °C to +70 °C (reduced cellular performance above 60 °C)
  • Storage temperature: -40 °C to +85 °C
  • Humidity: 0% to 95% RH (non-condensing) at 25 °C

Typical Applications

• Smart buildings and smart offices
• Indoor asset tracking
• Industrial IoT and automation
• Energy monitoring and metering
• Smart parking and facility management
• Campus and enterprise LoRaWAN® networks

Why choose the UG65?

The UG65 combines high LoRaWAN® capacity, network flexibility, and enterprise-grade security in a compact and energy-efficient gateway. Its built-in network server, extensive protocol support, and compatibility with major LoRaWAN® ecosystems make it an ideal solution for organizations seeking rapid deployment, scalability, and long-term operational reliability in professional IoT infrastructures.

Included Accessories

• DC jack power adapter
• Mounting bracket
• Bracket fixing screws
• Wall mounting kits
• LoRaWAN® antenna (18 cm)

Optional: 60 cm LoRaWAN® fiber-glass N-N antenna kit; magnetic cellular antenna (cellular EA version only).
