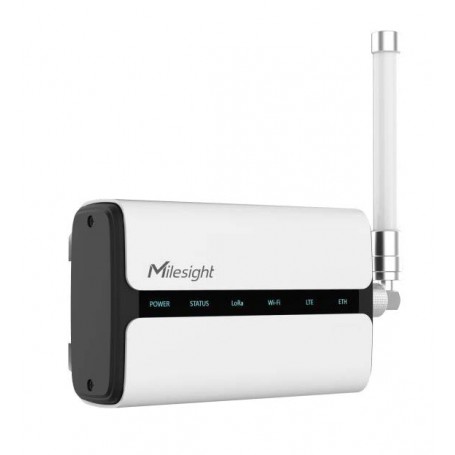

LoRaWAN® Gateway – 8 Channels Gigabit Ethernet IP65: UG65 (Ethernet Version) | Milesight

The UG65 Ethernet version is a robust semi-industrial 8-channel LoRaWAN® gateway designed for reliable indoor and light outdoor deployments. Based on the Semtech SX1302 LoRa® chipset and powered by a quad-core 64-bit ARM Cortex-A53 processor, it supports high device density and advanced edge processing capabilities.

With Gigabit Ethernet connectivity (10/100/1000 Base-T) and PoE support, the UG65 ensures stable and secure wired backhaul. Its IP65 enclosure enables installation in technical rooms, industrial facilities, campuses, and sheltered outdoor locations such as under eaves.

Advantages

• Industrial-grade quad-core CPU (1.5 GHz) for high processing performance
• 8 half/full-duplex LoRaWAN® channels supporting up to 2000 end devices
• Gigabit Ethernet with PoE (802.3af) for reliable wired connectivity
• IP65 enclosure suitable for harsh indoor and semi-outdoor environments
• Extended RF coverage up to 15 km line-of-sight
• Advanced VPN support (OpenVPN, IPsec, WireGuard, L2TP, PPTP, DMVPN)
• Integrated Network Server and MQTT(s)/HTTP(s) API for seamless integration
• BACnet/IP and Modbus support for BMS and PLC integration

Main Features

• LoRaWAN® Channels: 8 (Half/Full-Duplex)
• Chipset: Semtech SX1302
• Frequency Band: US915 / AU915 / AS923 / KR920
• Receiver Sensitivity: up to -140 dBm
• Max TX Power: 27 dBm
• Supported Devices: approx. 2000 Class A/B/C devices
• CPU: Quad-core 1.5 GHz ARM Cortex-A53
• Memory: 512 MB DDR4 RAM
• Storage: 8 GB eMMC
• Ethernet: 1 × RJ45 WAN Port, 10/100/1000 Mbps, PoE PD supported
• Ethernet Isolation: 1.5 kV RMS
• Wi-Fi: 2.4 GHz (AP or Client mode)
• Power Input: 9–24 V DC / 802.3af PoE / 5V via Type-C
• Power Consumption: Typical 2.9 W, Max 4.2 W
• Ingress Protection: IP65
• Operating Temperature: -40°C to +70°C
• Dimensions: 180 × 110 × 55.5 mm
• Weight: 548 g
• Certifications: FCC, IC, PTCRB

Typical Applications

• Smart buildings and smart offices
• Industrial automation and facility monitoring
• Campus-wide LoRaWAN® infrastructure
• Energy management systems
• BMS and PLC integration via BACnet/IP or Modbus
• Municipal and semi-outdoor IoT deployments

Additional Information

The UG65 Ethernet version is designed for mission-critical LoRaWAN® deployments requiring high reliability, secure wired connectivity, and industrial-grade performance. With integrated network services, advanced VPN capabilities, and native support for building automation protocols, it provides a powerful and scalable solution for Canadian smart infrastructure and industrial IoT projects.
