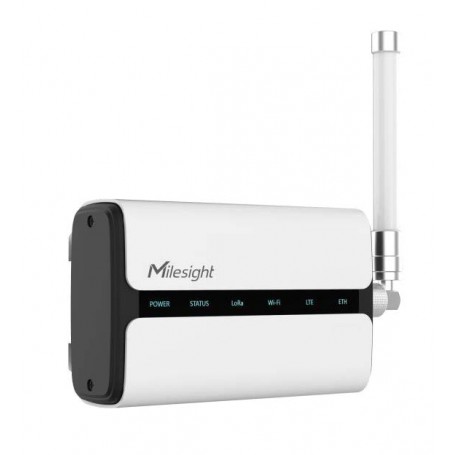

LoRaWAN® Gateway – 8 Channels LTE 915 MHz IP65: UG65-L08GL-915M-EA | Milesight

The UG65-L08GL-915M-EA is a semi-industrial 8-channel LoRaWAN® gateway with integrated 4G LTE backhaul, engineered for secure and reliable IoT deployments across North America. Based on the Semtech SX1302 chipset and powered by a quad-core 1.5 GHz ARM Cortex-A53 processor, it delivers high throughput, advanced edge computing capability, and extended RF coverage.

Operating in the US915 MHz ISM band, this LTE version enables autonomous deployment in locations where wired infrastructure is unavailable or requires redundancy. Its IP65-rated enclosure supports installation in industrial facilities, smart buildings, campuses, and sheltered outdoor environments.

Advantages

• Integrated 4G LTE (CAT 1) connectivity for independent or backup WAN communication
• 8 half/full-duplex LoRaWAN® channels supporting up to 2000 end devices
• Industrial quad-core processor for advanced edge processing and data handling
• IP65 enclosure suitable for harsh indoor and semi-outdoor installations
• Extended RF coverage up to 15 km line-of-sight
• Comprehensive VPN support (OpenVPN, IPsec, WireGuard, L2TP, PPTP, DMVPN)
• Native integration with BMS/PLC systems via BACnet/IP and Modbus
• Embedded Network Server and MQTT(s)/HTTP(s) APIs for scalable integration

Main Features

• LoRaWAN® Channels: 8 (Half/Full-Duplex)
• Chipset: Semtech SX1302
• Frequency Band: US915 (North America)
• Receiver Sensitivity: up to -140 dBm
• Max TX Power: 27 dBm
• Supported Devices: approx. 2000 Class A/B/C devices
• CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory: 512 MB DDR4 RAM
• Storage: 8 GB eMMC
• Cellular Network: 4G LTE (CAT 1)
• LTE Bands (North America): B2/4/5/12/13/66
• SIM Slot: 1 × Mini SIM (2FF)
• Ethernet: 1 × RJ45 WAN Port, 10/100/1000 Mbps, PoE PD supported
• Wi-Fi: IEEE 802.11 b/g/n, AP or Client mode
• Power Input: 9–24 V DC / 802.3af PoE / 5V via Type-C
• Power Consumption: Typical 2.9 W, Max 4.2 W
• Ingress Protection: IP65
• Operating Temperature: -40°C to +70°C
• Dimensions: 180 × 110 × 55.5 mm
• Weight: 548 g
• Certifications: FCC, IC, PTCRB

Typical Applications

• Remote industrial sites without wired broadband
• Municipal and smart city deployments
• Energy management and utility monitoring
• Smart campuses and distributed facilities
• Industrial automation and SCADA integration
• Backup WAN infrastructure for mission-critical IoT networks

Additional Information

The UG65-L08GL-915M-EA combines carrier-certified LTE connectivity, industrial-grade hardware, and advanced network services to deliver a secure and scalable LoRaWAN® infrastructure. With integrated VPN tunneling, firewall functions, WAN failover, and building automation protocol support, it is ideally suited for Canadian smart infrastructure, industrial IoT, and critical monitoring applications requiring resilient wide-area connectivity.
