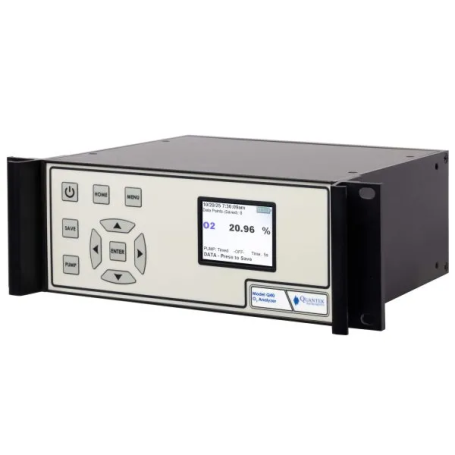

Gas Analyzer – Rackmount O2 / CO2 Industrial Gas Monitoring: Q40 Series | QUANTEK INSTRUMENTS

The Q40 Series from Quantek Instruments is a family of 2U rack-mounted gas analyzers designed for accurate monitoring of oxygen (O₂) and/or carbon dioxide (CO₂) in industrial, laboratory, and research environments. Available in three configurations (Q40, Q41, Q42), the series combines robust sensing technologies with a modern microprocessor-based architecture.

The system integrates a color TFT display, a 32-bit microprocessor control platform, and a comprehensive internal data logging system. An optional integrated miniature diaphragm pump enables flexible sampling modes, including timed, continuous, or cyclic operation.

Designed for standard 19-inch rack integration, the Q40 Series provides versatile sampling connections such as Swagelok fittings, Luer connectors, or sampling probes. All interfaces are positioned on the rear panel, simplifying installation and maintenance in industrial cabinets or laboratory racks.

Advantages

• 2U rackmount format for easy integration into 19” industrial cabinets and laboratory racks
• Multiple configurations available: O₂ analyzer, CO₂ analyzer, or combined O₂/CO₂ measurement
• Long-life electrochemical O₂ sensor with up to 5 years expected lifetime
• Internal data logging storing up to 100,000 timestamped measurements
• CSV data export via USB for simplified analysis and reporting
• Optional integrated diaphragm sampling pump with continuous, timed, or cyclic operation
• Flexible sampling connections including standard 1/8” Swagelok fittings
• Designed and manufactured in the USA with a 2-year warranty

Main Features

• Available models:
  • Q40 – Oxygen analyzer
  • Q41 – Carbon dioxide analyzer
  • Q42 – Combined oxygen and carbon dioxide analyzer
• O₂ sensing technology: Proprietary electrochemical sensor
• CO₂ sensing technology: NDIR infrared sensor
• Measurement ranges:
  • O₂: 0–25 % or 0–100 %
  • CO₂: 0–20 % or 0–100 %
• O₂ detection limit: 0.1 %
• O₂ response time: 5 seconds to 95 %
• O₂ accuracy: ±0.1 % O₂ or ±1 % of reading
• CO₂ accuracy: ±0.2 % CO₂ or ±1 % of reading (0–100 % range)
• Display: 2.6” color TFT display (320 × 240 pixels)
• Power supply: 110 / 240 Vac input to 12 Vdc
• Dimensions: 203 × 51 × 178 mm
• Weight: 0.9 kg
• Warranty: 2 years parts and labor

Typical Applications

• Inert gas monitoring systems
• Modified Atmosphere Packaging (MAP) gas verification
• Research laboratories and analytical facilities
• Oil & Gas process monitoring
• Carbon capture and carbon management systems
• Industrial reactors and process control
• Controlled atmosphere rooms and chambers
• Gas mixing and blending systems

Additional Information

The Q40 Series provides a reliable and flexible platform for continuous or spot gas analysis in demanding industrial and research environments. Its 2U rackmount format, long-life precision sensors, and advanced data logging capabilities make it well suited for process monitoring, quality assurance, and laboratory measurement systems.

With multiple configuration options (O₂, CO₂, or combined O₂/CO₂) and flexible sampling interfaces, the analyzer integrates easily into existing instrumentation racks and process control infrastructures.
