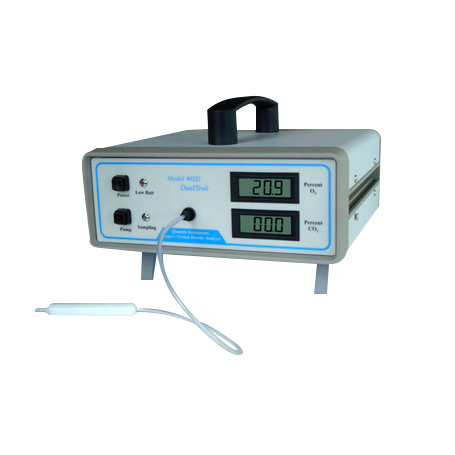

Portable MAP Gas Analyzer – Residual O₂ and CO₂ Measurement for Modified Atmosphere Packaging: Model 902D | QUANTEK INSTRUMENTS

The Model 902D Portable MAP Gas Analyzer is designed for fast and reliable measurement of residual oxygen (O₂) and carbon dioxide (CO₂) in modified atmosphere packaging (MAP) used in the food industry and in various industrial applications.

The analyzer measures O₂ (0–100%) and CO₂ (0–100%) simultaneously, allowing users to verify the composition of packaging atmospheres that may contain nitrogen, oxygen, carbon dioxide or mixed gases. This enables quick verification of packaging quality and helps detect potential leaks or incorrect gas mixtures.

Powered by 220V AC or a rechargeable battery, the instrument can be used directly on production lines or in laboratory environments. Its compact design (less than 3 kg) makes it suitable for use by both technical and non-technical personnel.

The analyzer uses a sampling probe equipped with a needle that pierces the packaging through a self-adhesive septum. The integrated pump draws the gas sample and displays the measured gas concentrations in approximately 15–20 seconds.

Advantages

• Simultaneous measurement of O₂ and CO₂ across a wide range (0 – 100%)
• Very small sample volume required: only 10 cc
• Integrated sampling pump
• Fast measurement results displayed in 15 – 20 seconds
• Liquid blocking filters protecting the analyzer from humid samples
• Low maintenance costs thanks to long-life O₂ and CO₂ sensors (typically 4 – 5 years)
• Compact and portable design suitable for production environments and laboratories

Main Features

• Measurement range O₂: 0 – 100%
• Measurement range CO₂: 0 – 100%
• Simultaneous gas analysis
• Power supply: 220V AC and rechargeable battery
• Battery autonomy: up to 8 hours on a full charge
• Sampling system: integrated pump
• Measurement time: 15 – 20 seconds
• Required sample volume: approximately 10 cc
• External dimensions: 25 × 10 × 26 cm
• Weight: 2.95 kg

Typical Applications

• Food industry (MAP packaging control)
• Meat packaging
• Dairy products
• Snack foods
• Ready meals
• Coffee packaging
• Pet food packaging
• Desserts and prepared foods

• Industrial applications
• Bioreactors and fermentation monitoring
• Gas blending systems
• Controlled atmosphere storage for fruits
• Fermentation processes
• Biofuel testing facilities
• Algae research and cultivation
• Controlled atmosphere chambers

Additional Information

The analyzer is delivered ready to operate and includes:

• 220V power supply
• Rechargeable battery
• Internal sampling pump
• Starter kit with sampling needles
• Particle filters
• Moisture protection filters
• Self-adhesive septa for package sampling

Optional accessories:

• Moisture barrier filter for humid or wet samples
• Fast response sensors with response time under 5 seconds

The Model 902D is an efficient solution for quality control of modified atmosphere packaging, enabling rapid verification of gas composition directly on production lines or in laboratory environments.
