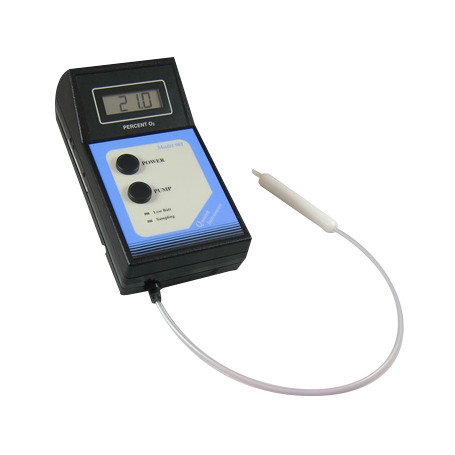

Portable MAP Oxygen Analyzer – Residual O₂ Measurement for Modified Atmosphere Packaging: Model 901 | QUANTEK INSTRUMENTS

The Model 901 Portable MAP Oxygen Analyzer is designed for fast and easy measurement of residual oxygen (O₂) in modified atmosphere packaging (MAP) for food industry applications and other packaging control requirements.

Powered by a rechargeable Ni-Cad battery with up to 8 hours of autonomy on a full charge, this analyzer is especially well suited for mobile quality control checks in production areas, laboratories and cold storage environments.

Its compact hand-held format and low weight of less than 1.4 kg make it easy to use by non-technical personnel while still providing reliable measurement performance. The analyzer has been proven in hundreds of installations across food packaging applications.

The integrated sampling probe with needle pierces the package through a self-adhesive septum. Residual gas is then drawn by the internal sampling pump, allowing the measured oxygen concentration to be displayed within 15 to 20 seconds.

Advantages

• Excellent price-to-performance ratio
• Wide measurement range: 0 – 100% O₂
• Integrated internal sampling pump
• Fast result display in 15 – 20 seconds
• Rechargeable battery-powered operation
• Liquid blocking filters for improved protection
• Very low sample volume required: only 10 cc for flexible packaging
• Low maintenance costs thanks to a long-life O₂ sensor, typically up to 5 years
• Reliable performance in a wide range of packaging atmospheres

Main Features

• Measurement parameter: residual oxygen (O₂)
• Measurement range: 0 – 100% O₂
• Power supply: rechargeable Ni-Cad battery
• Battery autonomy: up to 8 hours on a full charge
• Sampling system: integrated internal pump
• Measurement time: 15 – 20 seconds
• Required sample volume: approximately 10 cc
• Portable hand-held design
• Weight: less than 1.4 kg
• Temperature-compensated sensor for use in cold rooms
• Sensor not affected by high CO₂ or nitrogen concentrations
• Suitable for applications with high O₂ levels and traces of hydrocarbons

Typical Applications

• Modified atmosphere food packaging control
• Meat packaging
• Dairy products
• Snack foods
• Prepared meals
• Coffee packaging
• Pet food packaging
• Desserts and other packaged food products
• General packaging integrity verification

Additional Information

The Model 901 is supplied ready to use with a complete starter kit including:

• Sampling needles
• Filters
• Self-adhesive septa
• Battery charger

This analyzer is particularly appreciated for its robust and proven design, making it a dependable solution for routine residual oxygen testing in MAP packaging. Its sensor is designed to deliver stable performance even in atmospheres containing high levels of CO₂, nitrogen or oxygen.

The temperature-compensated sensor also allows operation in refrigerated environments, making the instrument suitable for use in cold rooms and chilled food production areas.
