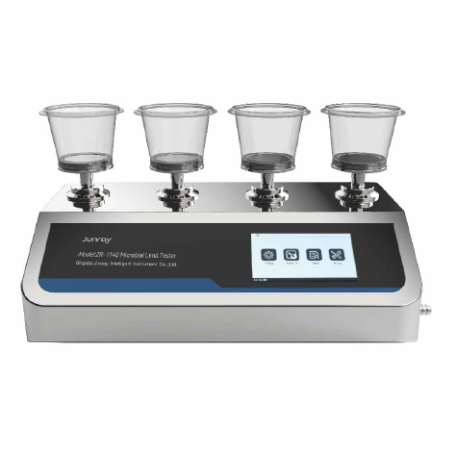

Microbial Limit Tester Membrane Filtration System – ZR-1140 | JUNRAY

The ZR-1140 Microbial Limit Tester is a membrane filtration system designed to determine whether a non-sterile pharmaceutical product complies with established microbial quality specifications. The system enables reliable microbial limit testing (MLT) by filtering samples through sterile membranes and supporting efficient microorganism recovery.

Designed for laboratory environments in pharmaceutical, biotechnology and quality control applications, the ZR-1140 integrates multiple filtration heads and a high-performance diaphragm pump to ensure stable flow rates and consistent filtration results.

Advantages

• High efficiency microbial limit testing using membrane filtration methodology
• Integrated diaphragm pump ensuring reliable and low-noise operation
• Multiple filtration heads enabling parallel sample processing
• SIP (Sanitize In Place) capability for simplified sterilization
• Compact laboratory design suitable for pharmaceutical QC laboratories
• Digital touchscreen interface for easy operation and monitoring

Main Features

• Filtration heads: 4 standard heads (1, 3 or 6 optional)
• Membrane diameter: Ø47 mm (optional Ø50 mm or Ø60 mm)
• Membrane pore size: 0.45 µm
• Filter bottle capacity: 100 ml
• Flow rate: >1500 ml/min (empty), >600 ml/min under load
• Integrated diaphragm pump with low noise operation (<65 dB)
• Touchscreen display with data storage capability
• USB data export and optional Bluetooth printing
• Dimensions: 415 × 250 × 130 mm
• Weight: approx. 7 kg

Typical Applications

• Pharmaceutical microbial limit testing (MLT)
• Quality control of non-sterile pharmaceutical products
• Biotechnology laboratories
• Food and beverage microbiological testing
• Environmental microbiology laboratories

Additional Information

• The system includes a built-in diaphragm pump and multiple filtration heads allowing simultaneous sample filtration.
• Filtration heads can be easily dismantled and sterilized using steam sterilization at 121 °C.
• The ZR-1140 supports efficient microbial recovery through standardized membrane filtration protocols used in pharmaceutical quality control.
