Airflow Pattern Visualizer Smoke Generator for Cleanrooms – ZR-4001 | JUNRAY

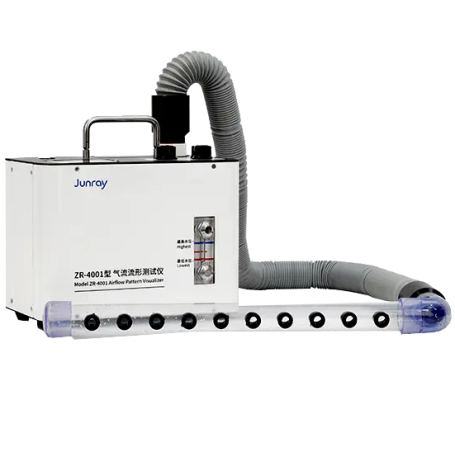

The ZR-4001 Airflow Pattern Visualizer (AFPV) is designed to generate visible fog for the analysis of airflow patterns in controlled environments. By producing fine water mist particles between 1 and 10 µm, the system allows operators to clearly visualize airflow direction, turbulence and vortices in cleanrooms and critical environments.

This visualization technology is widely used for cleanroom validation, airflow balance verification and safety testing. The ZR-4001 provides a reliable method for assessing airflow behavior in pharmaceutical facilities, semiconductor cleanrooms, biosafety cabinets and research laboratories.

Advantages

• High-quality fog generation for clear airflow visualization
• Portable design with built-in lithium battery
• Adjustable airflow density and speed for different testing conditions
• Compatible with purified water (DI or WFI)
• Quick water refill and easy maintenance
• Automatic protection system when water level is low

Main Features

• Fog particle size: 1 – 10 µm
• Visible fog distance: 1 – 2 m (3 – 5 feet)
• Fog type: pure fog using DI or WFI water
• Fog duration: ≥ 60 minutes
• Water consumption: ≤ 10 mL/min
• Fog output rate: ≤ 0.216 m³/min
• Extendable fog probe: up to 1.2 m
• Battery operation: ≥ 60 minutes
• Noise level: < 60 dB
• Dimensions: 262 × 172 × 227 mm
• Weight: approximately 3.2 kg
• Power consumption: ≤ 120 W

Typical Applications

• Cleanroom airflow visualization
• Laminar flow verification in pharmaceutical production areas
• Biosafety cabinet airflow testing
• HVAC airflow pattern analysis
• Leak detection and airflow balance testing

Additional Information

• Produces stable water-based fog suitable for sterile environments.
• Supports airflow validation procedures required in controlled environments.
• Used for evaluating airflow direction, turbulence and contamination control efficiency.
