Aerosol Photometer for HEPA Filter Leak Testing – ZR-6012 | JUNRAY

ZR-6012 aerosol photometer for HEPA and ULPA filter leak detection. Portable cleanroom testing instrument for pharmaceutical, laboratory and HVAC validation.

Request a quote

PRICE ON REQUEST

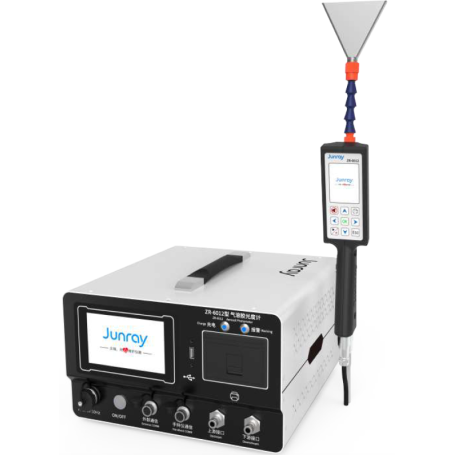

The ZR-6012 Aerosol Photometer is designed for the detection of leaks in HEPA and ULPA filtration systems. Using the principle of light scattering, the instrument measures aerosol particle concentration upstream and downstream of filtration systems to identify filter leaks quickly and accurately.

This portable photometer enables real-time monitoring and precise localization of leaks in cleanroom filtration systems, biosafety cabinets and HVAC installations. It is widely used for cleanroom validation, pharmaceutical production environments and filter certification.

Advantages

Stable digital photometer technology ensuring reliable measurements
Wide dynamic measurement range for accurate aerosol concentration detection
Portable design with optional battery operation
Handheld probe allowing easy inspection of hard-to-reach areas
Touchscreen interface with intuitive operation
Integrated alarm system with visual and audible alerts

Main Features

Sampling flow rate	28.3 L/min
Dynamic range	0.0001 – 700 µg/L
Leakage detection range	0.0001 % – 100 %
Sensitivity	1 % of readings > 0.01 %
Repeatability	0.5 % of readings > 0.01 %
Data storage	up to 100,000 records
Operating temperature	10 – 35 °C
Operating humidity	5 – 85 % RH (non-condensing)
Aerosol types supported	PAO, DOP and similar testing aerosols
Power supply	AC 220 V ±10 %, 50/60 Hz
Dimensions	300 × 330 × 184 mm
Weight	approx. 8 kg (device)
Power consumption	< 200 W

Typical applications

HEPA and ULPA filter leak testing
Cleanroom validation and certification
Biosafety cabinet testing
Pharmaceutical and biotechnology manufacturing
Filter certification and HVAC system verification

Additional Information

Designed for high-sensitivity detection of aerosol concentration during filter integrity testing.
Compatible with aerosol generators producing PAO or DOP test aerosols.
Supports USB data export and real-time reporting for validation documentation.
Integrated alarms notify operators when measured values exceed configured thresholds.

What should you check before choosing this product?

Match the measured gases or particle fractions to the monitoring objective. Check sampling conditions, concentration range, data interfaces and the selected sensor configuration before deployment.
