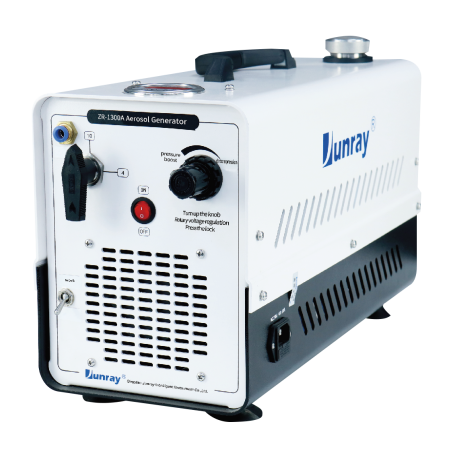

Laskin Nozzle Aerosol Generator for HEPA Filter Testing – ZR-1300A | JUNRAY

The ZR-1300A Aerosol Generator is designed to produce stable aerosol particles for testing and validating filtration systems. Using the Laskin nozzle aerosol generation principle, the device generates DOP, DOS or PAO aerosols for performance testing of HEPA and ULPA filters in cleanroom environments.

The generator produces a controlled concentration of aerosol particles suitable for leak testing and integrity verification of filtration systems. It is widely used in cleanroom certification, pharmaceutical production facilities, hospitals and filter manufacturing.

Advantages

• Stable aerosol generation using Laskin nozzle technology
• Adjustable aerosol concentration for different testing conditions
• Compatible with multiple aerosol types including DOP, DOS and PAO
• Balanced particle output ensuring consistent testing results
• Robust industrial design suitable for laboratory and field testing
• Simple operation and maintenance

Main Features

• Generation method: 4–10 Laskin nozzles
• Working pressure: 0 – 600 kPa
• Particle output range: 1.4 – 56.6 m³/min
• Aerosol concentration: 100 µg/L at 5.6 m³/min airflow
• Aerosol concentration: 10 µg/L at 56.6 m³/min airflow
• Air type: cold aerosol generation
• Dimensions: 200 × 500 × 280 mm
• Weight: approximately 18 kg
• Noise level: < 65 dB(A)
• Power supply: AC 220 V ±10 %, 50 Hz
• Power consumption: ≤ 500 W

Typical Applications

• HEPA and ULPA filter leak testing
• Cleanroom validation and certification
• Pharmaceutical manufacturing facilities
• Hospitals and biosafety laboratories
• Filter manufacturing quality control

Additional Information

• Designed for controlled aerosol generation during cleanroom filter integrity testing.
• Provides consistent aerosol concentration required for reliable filtration performance verification.
• Compatible with industry standard cleanroom testing procedures.
