Indoor Ambience Monitoring Sensor : AM30x/AM319 | Milesight

The AM30x/AM319 is a compact indoor ambience monitoring sensor designed to measure temperature, humidity, light, CO2 concentration, TVOC levels, barometric pressure, PM2.5, PM10, and motion.

Request a quote
PRICE ON REQUEST

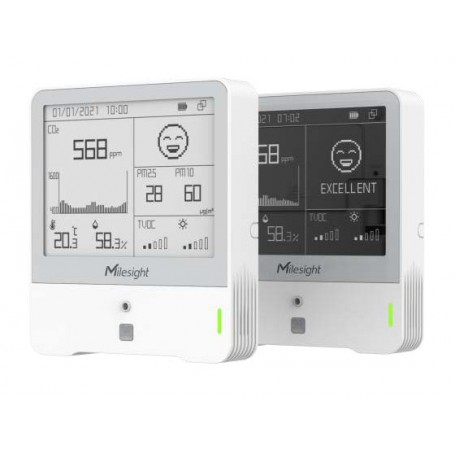

The AM30x/AM319 is a compact indoor ambience monitoring sensor designed to measure temperature, humidity, light, CO2 concentration, TVOC levels, barometric pressure, PM2.5, PM10, and motion. Data is displayed in real-time on an E-ink screen, helping to monitor indoor environment and comfort.

Advantages :

  • Multiple display modes and clear emoticons to easily understand comfort levels via the screen.
  • Supports batteries or DC power supply.
  • Equipped with traffic light indicator and buzzer to indicate device status and threshold alarms.
  • Stores locally 18,000 historical records and supports retransmission to prevent data loss.
  • Compliant with standard LoRaWAN® gateways and network servers.
  • Quick and easy management with Milesight IoT Cloud and Milesight Development Platform.

Main Features :

Dimensions

  • AM30x/AM319: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)

Materials

  • Ingress Protection: IP30

Performance

  • Temperature: -20°C to 60°C, accuracy ±0.2°C
  • Humidity: 0% to 100% RH, accuracy ±2% RH
  • Motion: Passive infrared (PIR) detection, detection range 5m
  • Light: 0-60000 Lux
  • TVOC: 1.00 to 5.00 (IAQ Rating), accuracy ±1
  • Barometric Pressure: 260 - 1260 hPa, accuracy ±0.5 hPa
  • CO2: 400 to 5000 ppm, accuracy ±(30 ppm + 3% of reading)
  • PM2.5 & PM10: 0 to 1000 μg/m3, accuracy ±10%
  • HCHO/O3 (AM319 only): HCHO 0 ~ 1.25 mg/m3, accuracy ±10%; O3 0 ~ 10 ppm, accuracy ±5%

Interfaces and Power Supply :

  • Display: 4.2-inch black and white E-ink screen
  • Buttons: 1 power button + 1 reset button
  • LED & Buzzer: 1 status and alarm indicator + 1 buzzer
  • USB: 1 Type-C port for power supply, configuration, or debugging
  • Power Supply: 5V/1A via Type-C port

Physical Characteristics :

  • Operating Temperature: -20°C to 60°C (E-ink screen: 0°C to 40°C)
  • Relative Humidity: 10% to 90% (non-condensing)
  • Ingress Protection: IP30
  • Material and Color: ABS (UL94 HB), white
  • Weight: 148g

Certifications :

  • Regulatory: CE, FCC, ISED
  • Environmental: RoHS, Works with WELL

Applications :

  • Offices
  • Stores
  • Classrooms
  • Hospitals
