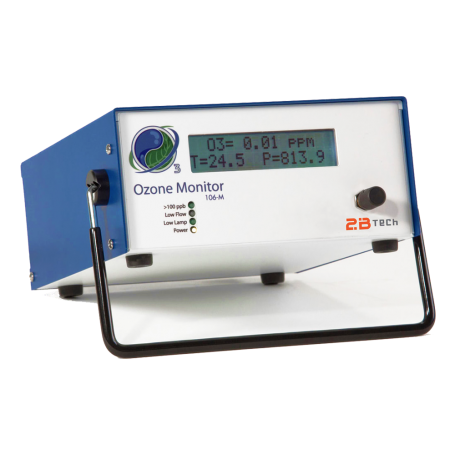

Ozone analyzer - UV absorption high range: Model 106-M
zoom_out_map
chevron_left chevron_right

Ozone analyzer - UV absorption high range: Model 106-M | 2.B Tech

Industrial ozone analyzer 0–1000 ppm with UV absorption technology, high precision, fast response time and multi-channel capability for demanding process monitoring.

PRICE ON REQUEST

The Model 106-M Ozone Monitor is an industrial-grade analyzer designed for accurate ozone measurement in the 0 to 1,000 ppm range. Based on UV absorption at 254 nm, it delivers high precision and reliability for demanding industrial environments.

Its robust design integrates most components directly onto a circuit board, ensuring high durability and simplified maintenance. Available in standard, industrial, or OEM configurations, it can be easily integrated into existing systems or custom installations.

This analyzer is particularly suited for applications such as off-gas monitoring in water treatment processes, ensuring efficient ozone destruction and process optimization.

Advantages

Wide measurement range up to 1,000 ppm for industrial ozone applications
High accuracy and stability ±2% of reading with minimal drift
Fast response time measurement interval of 2 seconds
Flexible integration available in OEM and industrial enclosures
Multi-channel capability optional 3 or 6 channel sampling
Advanced outputs analog (4-20 mA), digital (USB, RS232)
Low maintenance design simplified architecture with minimal wiring

Main features

Measurement principle UV absorption at 254 nm (single beam)
Measurement range 0 – 1,000 ppm
Resolution 0.01 ppm
Detection limit 0.02 ppm
Accuracy better than ±2% of reading
Response time 4 seconds (2 s output)
Internal data logger up to 32,736 data points
Data averaging configurable (10 s to 1 hour)
Flow rate 0.3 to 1.5 L/min
Operating temperature 0 to 50°C
Power supply 100–240 VAC or 11–28 VDC

Typical applications

  • Water treatment plants: ozone off-gas monitoring
  • Industrial ozone generators: process control and safety
  • Environmental monitoring: high concentration ozone analysis
  • Research and pilot systems: ozone process optimization
  • OEM integration: embedded ozone monitoring solutions

Additional Information

The Model 106-M offers multiple configuration options, including flow-through design, particle filters, and corrosion-resistant versions for air-fed ozone generators.

It features relay outputs for process control, allowing automated management of ozone generation systems or alarm triggering. Multi-channel configurations enable simultaneous sampling from multiple points, improving system efficiency.

With NIST traceable calibration and advanced compensation for temperature and pressure, the analyzer ensures reliable long-term performance in industrial environments.

What should you check before choosing this product?

Match the ozone concentration range and sampling arrangement to the application. Check sample flow, measurement interval and output interfaces, and confirm the exact configuration of the instrument being supplied.
