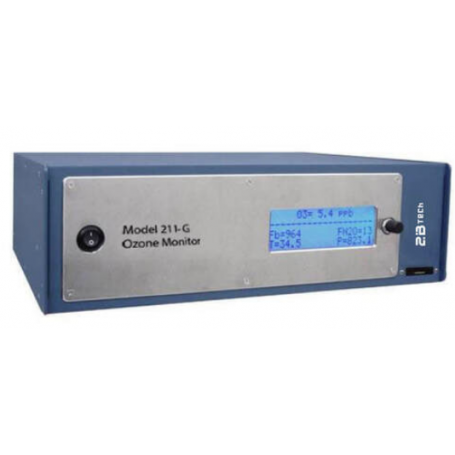

Ozone Monitor - Heated Graphite Scrubber: Model 211-G | 2.B Tech

The 2B Technologies Model 211-G is a dual-beam ozone monitor with a heated graphite scrubber. It measures ambient ozone while reducing interference from other UV-absorbing species, without the nitric oxide gas-phase scrubber used by the Model 211.

PRICE ON REQUEST

The 2B Technologies Model 211-G is a dual-beam ozone monitor with a heated graphite scrubber. It measures ambient ozone while reducing interference from other UV-absorbing species, without the nitric oxide gas-phase scrubber used by the Model 211.

Difference between 211 and 211-G

Main features

  • Measurement of ambient ozone with greatly reduced susceptibility to interferences from other UV-absorbing species such as aromatic VOCs and mercury
  • Dual beam, long path (30 cm) optical bench with high precision (< 0.5 ppb)
  • DewLine™ for elimination of water vapor interference, a unique feature of 2B Tech instruments
  • Inexpensive, simple, and robust instrument design in a 19” rack mount enclosure
  • Internal data logger
  • SD flash memory for virtually unlimited portable data storage
  • NIST-traceable calibration (calibration suggested annually)
  • Internal long-life sample pump (15,000 hours)
  • EPA Federal Equivalent Method (FEM) for compliance monitoring (modification to EQOA–0514–215)
  • Convenient user interface, including remote operation via RS-232 communication

Options

  • Battery
  • External particle filter
  • Cold-weather package: Lamp heater for outdoor operation in extreme environments
  • Bluetooth wireless data transmission
  • 4-20 mA analog current output
  • External serial-to-USB adapter

Technical specifications

Measurement Principle UV Absorbance at 254 nm; Dual Beam
Power Requirement; Supplied by Battery or 110/220 VAC Power Pack 11-14 V dc or 120/240 V ac, 1.8 A at 12 V, 22 watt
Size Rackmount: 17" w x 14.5" d x 5.5" h (43 x 37 x 14 cm)
Weight 13.4 lb (6.1 kg)

COMPARISON OZONE MONITORS

What should you check before choosing this product?

Match the ozone concentration range and sampling arrangement to the application. Check sample flow, measurement interval and output interfaces, and confirm the exact configuration of the instrument being supplied.

211-G
