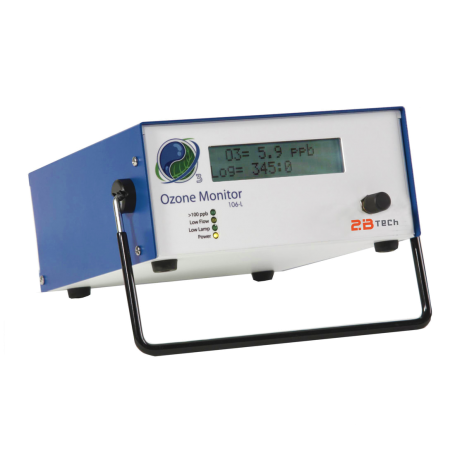

Ozone analyzer - high sensitivity UV measurement: Model 106-L | 2.B Tech

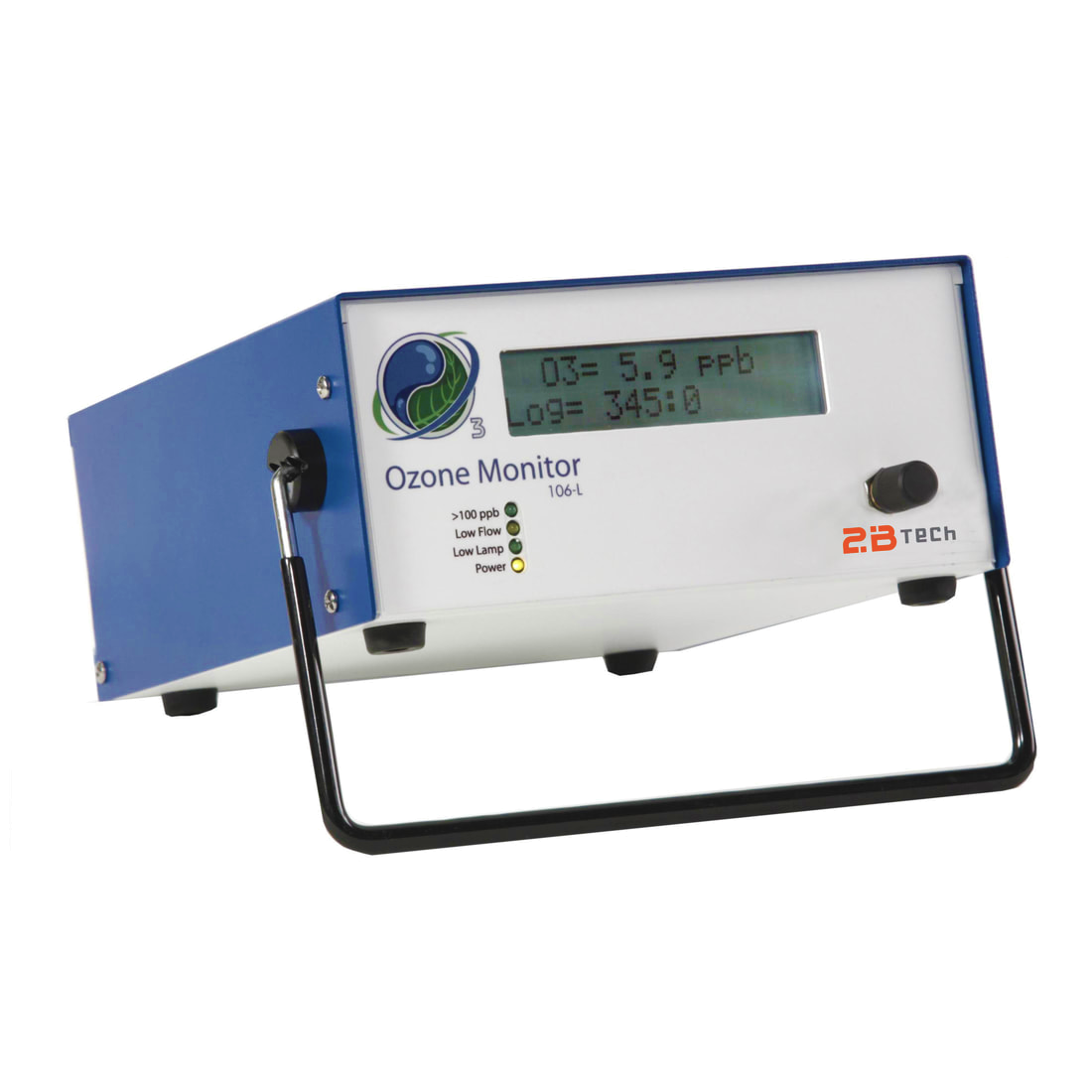

The Model 106-L Ozone Monitor is a high-sensitivity analyzer designed for both ambient air monitoring and industrial ozone applications. Using UV absorption at 254 nm, it provides accurate measurements from low ppb levels up to 20 ppm.

Part of the Model 106 series, this instrument features a robust design with components directly mounted on a printed circuit board, ensuring high reliability, reduced maintenance, and long-term stability. It is available in standard, industrial, or OEM configurations for flexible deployment.

The Model 106-L is EPA designated as a Federal Equivalent Method (FEM), making it suitable for regulatory compliance and environmental monitoring applications.

Advantages

• High sensitivity: detection down to a few ppb
• Wide dynamic range: up to 20 ppm
• FEM certified: compliant with air quality regulations
• Robust design: minimal wiring and high durability
• Flexible configurations: standard, industrial or OEM versions
• Multi-channel capability: optional 3 or 6 channel sampling
• Advanced communication: analog and digital outputs

Key Features

• Measurement principle: UV absorption at 254 nm (single beam)
• Measurement range: 0 – 20 ppm (0 – 20,000 ppb)
• Resolution: 0.1 ppb
• Detection limit: 3 ppb
• Accuracy: ±2% of reading or better
• Measurement interval: 2 seconds
• Internal data logger: up to 32,736 data points
• Flow rate: 0.6 to 1.5 L/min
• Operating temperature: 0 to 50°C
• Power supply: 100–240 VAC or 11–28 VDC

Typical Applications

• Ambient air quality monitoring: regulatory compliance and research
• Workplace safety: ozone exposure monitoring
• Water treatment: ozone process control
• Food processing: ozone sanitation monitoring
• Aquaculture and storage: ozone-based preservation systems

Additional Information

The analyzer includes digital outputs (USB, RS232) and analog outputs (0–2.5 V, 4–20 mA), allowing seamless integration into SCADA and industrial automation systems.

It features relay outputs for process control and alarm management, with advanced diagnostics based on temperature, pressure, and flow conditions. Multi-channel configurations are available for simultaneous sampling from multiple points.

With NIST traceable calibration, temperature and pressure compensation, and humidity control via DewLine™, the Model 106-L ensures high measurement reliability in demanding environments.
