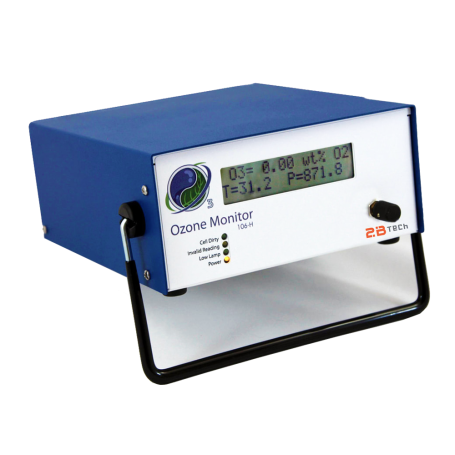

The Model 106-H Ozone Monitor is a high-performance analyzer specifically engineered for the measurement of high concentration ozone outputs from industrial ozone generators. Designed for operation in demanding environments, it supports ozone production systems based on UV or corona discharge technologies.

This model is part of the 106 series, featuring a robust “ozone monitor on a board” architecture that minimizes wiring and enhances reliability and serviceability. The 106-H variant is optimized for high concentration ranges up to 20 wt% and operates in a flow-through configuration without an internal pump, allowing direct integration into pressurized systems.

Advantages

• Wide measurement range up to 20 wt% ozone for high concentration applications
• Flow-through design compatible with high pressure (up to 50 psig) and partial vacuum systems
• High precision and stability with minimal drift over time
• Fast response time with 2-second measurement interval
• Robust industrial design with multiple enclosure options (standard, industrial, OEM)
• Low maintenance architecture with simplified internal electronics
• Flexible outputs including analog, digital, and relay controls

Key Features

• Measurement principle: UV absorption at 254 nm (single beam)
• Measurement range: 0 – 20 wt% (up to 14 vol%)
• Resolution: 0.01 wt%
• Accuracy: ±0.01 wt% or 2% of reading
• Detection limit: 0.02 wt%
• Response time: 4 seconds (2 s output)
• Flow rate: up to 55 L/min (nominal 20 L/min)
• Operating temperature: 0 to 50°C
• Data outputs: USB, RS232, analog (0-2.5 V, 4-20 mA)
• Integrated data logger: up to 32,736 lines
• Power supply: 100–240 VAC or 11–28 VDC
• Relay control: 2 relays (up to 4 in industrial version)

Typical Applications

• Industrial ozone generator monitoring
• Water and wastewater treatment systems
• Semiconductor and clean process applications
• Disinfection and oxidation processes
• Ozone production system optimization and control

Additional Information

The instrument is available in standard, industrial (weather-resistant), or OEM configurations, enabling seamless integration into laboratory setups or industrial systems. Its flow-through architecture and compatibility with pressurized lines make it particularly suitable for inline monitoring in advanced ozone production environments.
