Resonance Wood Grading App - Dynamic MOE: Resonance Lumber Grader | Fakopp

The Resonance Lumber Grader Android App is a simple resonance-based wood classification tool designed to estimate the dynamic modulus of elasticity of lumber. The method is based on the relationship between wood density and the square of the stress wave velocity, measured through longitudinal vibration.

The system uses a 100 g hammer and an Android phone or tablet running the dedicated software. After the user enters the wood length and selects the species, the application uses the corresponding nominal density to calculate the result. The density value can also be manually adjusted by the user when required.

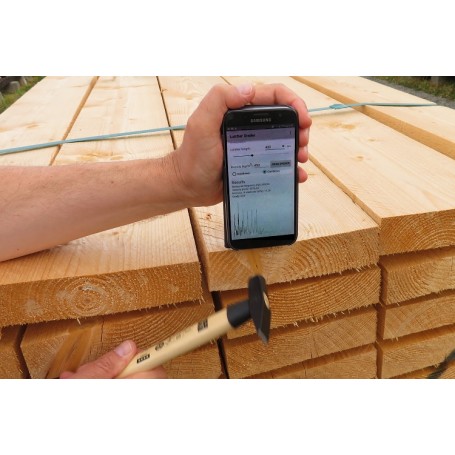

By striking the end of the timber, the application calculates the stress wave velocity and displays an indicative classification according to Eurocode 338. Due to the uncertainty associated with wood density, the classification must be considered as informative only.

Benefits

• Simple field operation: only a hammer and an Android device are required.
• Fast resonance-based assessment: the result is displayed directly on the Android screen after impact.
• Dynamic MOE evaluation: the application estimates the modulus of elasticity using density and stress wave velocity.
• Species-based density input: the user can select the wood species and use the nominal density value.
• Manual density override: the density can be adjusted when a more representative value is available.
• Eurocode 338 indication: the tool provides an informative grading result according to the selected parameters.
• Lightweight software solution: the application size is approximately 5 MB.

Main characteristics

• Measurement principle: longitudinal vibration and stress wave velocity calculation.
• Calculated indicator: dynamic modulus of elasticity, calculated from density and stress wave velocity.
• Classification reference: informative classification according to Eurocode 338.
• Required hardware: Android phone or tablet and 100 g hammer.
• User inputs: wood length, species selection and/or density value.
• Density management: nominal species density used by default, with manual override available.
• Application version: 24.08.16.
• Application size: approximately 5 MB.
• Licence: licensed for one Android device with lifelong access on the registered device.

Typical applications

• Informative grading of lumber using resonance-based stress wave velocity measurement.
• Wood quality assessment based on dynamic modulus of elasticity.
• On-site sorting support for timber where fast, portable measurement is required.
• Comparison of wood pieces according to calculated velocity and indicative class.
• Technical evaluation of lumber where species and density information are available.

Operating procedure

Licence activation

The Resonance Lumber Grader Android App is licensed for a single Android device. The licence provides lifelong access on the registered device. If the customer changes device, access must be requested again for the new Android device.

Download the Resonance Lumber Grader Android application before requesting your activation code from ES Canada.

Download Android App

Why choose the Resonance Lumber Grader Android App

The Resonance Lumber Grader Android App offers a practical and portable approach for estimating wood quality from resonance measurement. By combining wood length, species density and longitudinal vibration response, it provides a fast indication of stress wave velocity and dynamic modulus of elasticity.

This solution is particularly suitable for users looking for a simple Android-based tool to support lumber evaluation in the field or workshop. The measurement process is straightforward, the required hardware is minimal, and the classification result is immediately visible on the screen.

Because density uncertainty directly affects the calculated dynamic MOE, the displayed Eurocode 338 class must be used as an informative indication rather than a certified grading result.
